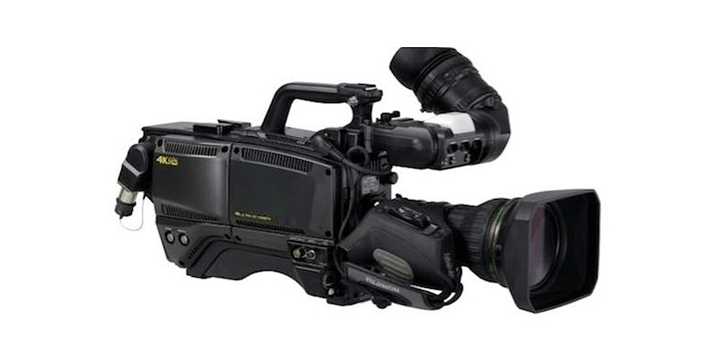

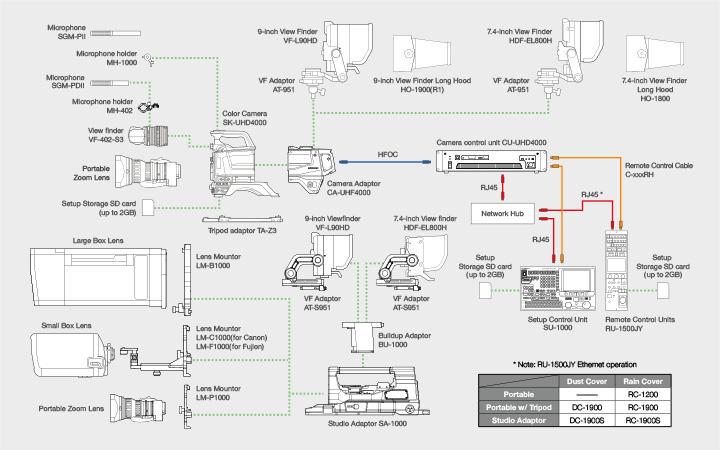

KOKUSAI DENKI's portable 4K color camera SK-UHD4000 can be used with existing high zoom ratio 2/3-inch format lenses which are the industry standard for outside broadcast live sports production applications. The unique high-precision 4-sensor optical system and the latest MOS sensor technology, provide high-resolution 4K (3840 x 2160) and 2K (1920 x 1080) video simultaneously. The functionality of the camera is same as traditional broadcast HDTV cameras.
Camera Adapter

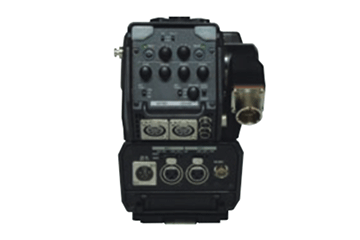

Camera Adapter (Fiber)
| CCU connector: |
1 x HFOC female connector (LEMO) SMPTE-304M-type |
|---|---|
| Intercom: | 2 x channel 5-pin each XLR. MIC on/off, ENG/PD level control, Tracker level control |
| Program audio: | 2 x PGM audio level controls with Channel 1 & Channel 2 intercom mix |
| Teleprompter power output: | 1 x 5-pin. AC 230 V/100 VA. external prompter R/G Tally drive out |
| Microphones: | Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off |
| Return/Aux switcher: | 4 x input remote AUX/VF video select connector (RET control) |
| Video in- & outputs: |
1 x HD-SDI1 OUT, 3G-SDI/HD-SDI, |
| Other I/O: |
1 x 29-pin (for SA-1100 cable-less interface, female) |
| Dimensions: | 133(W)x189(H) x194(D)mm |
| Weight: | app. 2.2 kg, (4.8 lbs) |
| Operating temperature: | -10°C to +45°C (14°F to 114°F) |

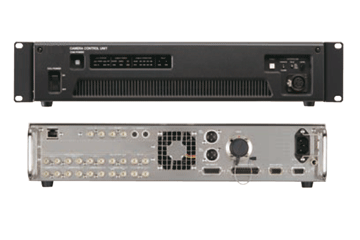

Camera Control Units
Fiber CCU with 3G Video transmission system with fiber connector (Lemo).
| GENLOCK IN: | 1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through) |
|---|---|
| RETURN IN (1/2/3/4): | 2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI, |
| RETURN B IN (1/2): | 3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C |
| PROMPT IN: | 1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through) |
| INTERCOM (HEAD SET): | 5-pin XLR, -60dBm |
| COMMUNICATION: | 1x D-sub 25-pin, Incom, Tally |
| INTERCOM: | 0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire, (ENG, PROD) Clear-Com and RTS compatible |
| PGM: | 0dBm / 600 Ω |
| R/G TALLY IN: | Contact or Voltage selectable |
| REMOTE 1: | 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable) |
| REMOTE 2: | 1x 4-pin, 1.5Vp-p |
| REMOTE 3: | 1x RJ-45 |
| 12G-SDI OUT: | 2 x BNC, 12G-SDI, (option with –S1 type). Square division or 2 sample interleave division 12G-SDI: SMPTE 424/425 Level A/B |
| 4K OUT: | 4 x BNC, 3G-SDI, embedded audio available (option with –S1 type). Square division or 2 sample interleave division 3G-SDI: SMPTE 424/425 Level A/B |
| HD/SD OUT (1/2/3): | 6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available) |
| 3G-SDI: | SMPTE 424/425 Level A |
| HD-SDI: | SMPTE 292M |
| SD-SDI: | SMPTE 259M-C |
| PIX/WFW OUT: | 1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio) |
| 3G-SDI: | SMPTE 424/425 Level-A |
| HD-SDI: | SMPTE 292M |
| SD-SDI: | SMPTE 259M-C |
| MIC OUT 1: | 1x XLR, 3-pin, 0dBm / 600 Ω |
| MIC OUT 2: | 1x XLR, 3-pin, 0dBm / 600 Ω |
| INTERCOM (HEAD SET): | 1x XLR, 5-pin, 0dBu Max. +15dB |
| REMOTE 1: | 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable) |
| REMOTE 2: | 1x 4-pin, 1.5Vp-p |
| REMOTE 3: | 1x RJ-45 |
| COMMUNICATION: | 1x D-sub 25-pin |
| INTERCOM: | 0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM) |
| TALLY OUT (R/G): | 1x D-sub 9-pin, Contact 24VDC, 10 mA |
| WFM CONTROL: | 1x D-sub 15-pin WFM 0-7,0/ 5V |
| Power supply voltage: | 100 to 240VAC, 47 to 63Hz (with auto-sensing mode) |
| Mass: | 11 kg, 24.3 lbs. approx. |
| Dimension: | 432 (W) × 88 (H) × 419 (D) mm, 2 RU |
| Operating temperature: | 0°C to 40°C, 32°F to 104°F |
| Power consumption: | 300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA) |
Viewfinder
Viewfinder HDF-700H-S2
Viewfinder HDF-700H-S2 with HK-1000 mount adapter
• Viewfinder HDF-700H-S1 with HK-700 mount adapter
Viewfinder
7-inch LCD Full HD Viewfinder HDF-700H-S1/S2
| Panel type | TFT LCD |
|---|---|
| Panel size | 7 - inch |
| Panel aspect ratio | 16:9 |
| Picture Resolution | 1920(H)x1080(V) |
| Viewing Angle | 178°(H),178°(V) |
| Brigtness / Contrast | 450 cd/m2 / 1.100:1 |
| Response Time | Fast Response Time |
| Function | Brightness, Contrast, Peaking Focus Assist, Marker Waveform, Vector scope |
| Tally | Red/Green |
| Weight | app. 1.35kg |
| Power consumption | app. 12W |
| EXTERNAL SDI IN | BNCx1 1080P*/1080i |
| Operation temperature | -20°C to +50°C |
| Viewfinder Adaptors Option | HK-700 /HK-1000/AT-951-S2 |
* Can be connected to the camera for 1080p Viewfinder Image
Optional Accessories
HFC-777LK Fixed Long Hood
HFC-777LM Movable Long Hood
Viewfinder
9” LCD Color (16:9) Viewfinder
| Number of pixel: | 1280(H) x 768(V) |
|---|---|
| Angle of view: | up and down 170°, left and right 170° |
| Marker: | Marker 1 on/off, Marker 2 on/off |
| Tally: | R/G and Front tally switch (H/L/off) 3 steps |
| Functions: | Lens extender on/off, waveform on/off, contrast, brightness, peaking, chroma and back light |
| Power: | On/off switch |
| Dimension: | 230(W)×175(H)×86(D) mm |
| Power Consumption: | approx. 16 W |
| Viewfinder Adapter: | AT-951 or AT-90 |
Viewfinder
2-inch LCD Viewfinder VF-L20HD
| Panel type | TFT LCD |
|---|---|
| Panel size | 2 - inch |
| Panel aspect ratio | 16:9 |
| Picture Resolution | 960(H)x540(V) |
| Color Reproduction | 16.7M |
| Brigtness | 220 cd/m2 |
| Function | Brightness, Contrast, Peaking knobs VF front-facing Diopter |
| Tally | Red/Green Tally ON/OFF Switch |
| Weight | app. 0,7kg |
| Power consumption | app. 5W (at Heater-OFF) app. 6,5W at (at Heater-ON) |
| Operation temperature | -10°C to +50°C heater on -20°C to +50°C |
Remote/Setup Control Unit + Studio Adapter
The high-performance touchscreen Remote Control Unit RU-1500JY-R1/-S3/S11 is connected to the Camera Control Unit (CCU) for remote operation of the camera or directly to the SK-HD camera series or Z-HD camera series. The RU-1500JY-S3&S11 has at on the top panel are lit by back light. Operators can see signs on the panel in the dark operation room.
All key Camera Control functions, such as the one touch color temperature function, makes the RU-1500JY-R1/-S3/S11 ideal not only for professional TV studios but also for OB van use. Lens iris control, pedestal control and preview switch are assembled with an axis joystick control knob (RU-1500JY/-S3/S11). The camera can be easily adjusted using the 3.5 inch LCD touchscreen panel and rotary encoders. Custom switches further support the professional user in designing a personal workflow.
Main control items are:
Camera power on/off, auto setup execution, save data file (scene file 0 to 8), manual adjustment using the rotary encoder and knobs, various on/off controls, PIX & WF video output select.
Network Control: RJ-45 TCP/IP
*Lens & Camera should support
The SU-1000 Setup Control Unit is used for the adjustment of camera parameters in a multi-camera production environment.Utilizing a new wide touch screen LCD panel that expands control functions.
It is connected directly to each CCU in parallel fashion via serial data cable, 12 cameras can be directly controlled from the SU-1000. Serial Camera control can be extended from 12 cameras up to 48 cameras(option).
RJ45 Network control up to 128 camera with a distance of up to 100 meters (with repeater this can be extended).
The compact and lightweight SU-1000 features Color LCD indicators in the display section to easily identify and access the provided control parameters. The unit is sufficiently small and lightweight enough to be used in space deprived locations such as encountered on a broadcast OB Van.
The SU-1000 has these primary functions:
Studio adapter with lens mounting option

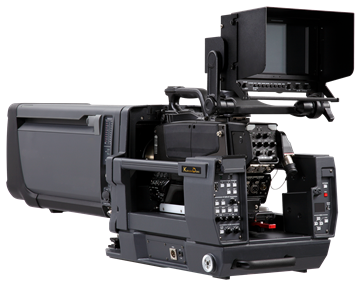

The SA-1000-S3/SA-1100 is a heavy-duty studio adapter designed for use with the Hitachi SK-HD or Z-HD series portable HDTV television camera. With the SA-1000-S3/SA-1100, the SK-HD or Z-HD series cameras can be used in a studio or field configuration. The SK-HD & Z-HD series portable HDTV television cameras can be easily installed and removed from the SA-1000-S3/SA-1100 chassis as required by the user to meet television program production requirements in studio and field.
