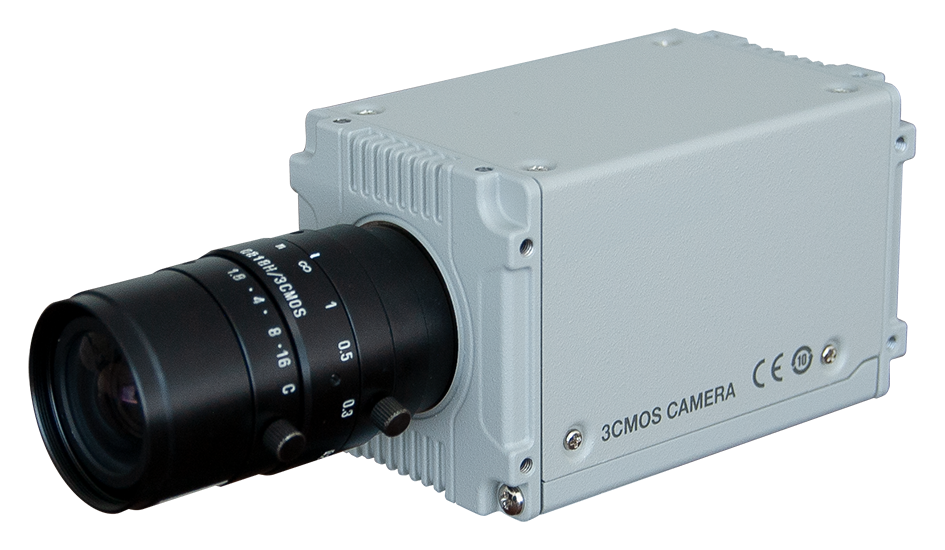

The HV-FM230SCL is a high resolution 1/2.3" 3 CMOS Progressive Scan Color Camera with 1920 x 1200 pixel (Full-HD). A lot of useful functions are integrated like electronic shutter from 1/60s to 1/50000s, exposure times from 20 to 655,370µs, AGC, external Trigger, Auto Shading, 6 Colour Masking, Frame-On-Demand Function, White Balance, AGC, Black Level Adjustment and Partial Scan Function.

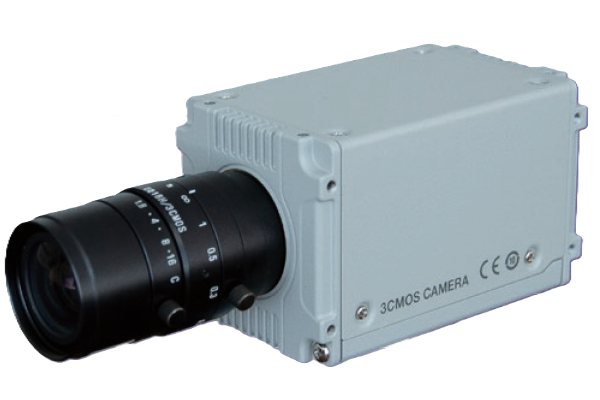

The HV-FM30WCL is a high frame rate 1/2.9" 3 CMOS Progressive Scan Color Camera with 720 x 540 pixel (VGA). A lot of useful functions are integrated like electronic shutter from 1/200s to 1/50000s, exposure times from 20 to 655,370µs, AGC, external Trigger, Auto Shading, 6 Colour Masking, Frame-On-Demand Function, White Balance, AGC, Black Level Adjustment and Partial Scan Function.
The HV-UHD301 is a small size 3CMOS remote head camera with a 4K resolution. The camera head has a size of 34 x 40 x 40 mm with a weight of 80g and C-Mount. The camera has 4 simultaneous output channels: 4K (12G-SDI, HDMI) and 2K (3G-SDI, HDMI). Various functions for image enhancement are available.
Full HD HD-SDI Camera

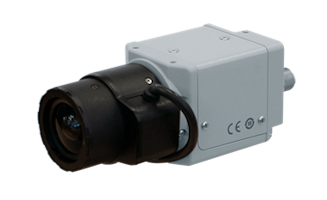

1/2.8" progressive scan CMOS HDTV (1080p/50) Colour Camera with HD-SDI Output. The KP-HD20AW is a HDTV 1/2.8" color camera with a high resolution (2.4 Mio. pixel) RGB Bayer CMOS sensor, switchable picture format 4:3/16:9, 800 TV lines resolution , HD-SDI and analog CVBS output, 50dB S/N, up to 100m data transfer via coaxial cable, with optional multiunit MU-HD101 up to 300m data transfer and voltage supply via coaxial cable.

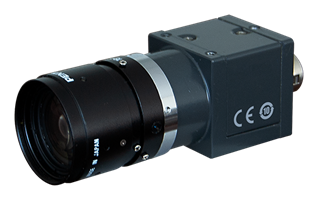

Global Shutter CMOS Color Progressive Scan Camera with Mini CameraLink™. The KP-FMR30WCL is a compact (29 x 29 x 29mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like global shutter, Frame On Demand, Selective Frame Rate and frame rates up to 523.5f/s with 720(H) × 540(V) imaging pixels.
Global Shutter CMOS Color Progressive Scan Camera with Mini CameraLink™. The KP-FMR230WCL is a compact (29 x 29 x 29mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like global shutter, Frame On Demand, Selective Frame Rate and frame rates up to 92.6f/s with 1920(H) × 1200(V) imaging pixels.
Global Shutter CMOS Color Progressive Scan Camera with Mini CameraLink™. The KP-FMR520WCL is a compact (29 x 29 x 29mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like global shutter, Frame On Demand, Selective Frame Rate and frame rates up to 35.7f/s with 2448(H) × 2048(V) imaging pixels.
2/3" CMOS Color Progressive Scan Cameras with Mini CameraLink™. The KP-FMR530WCL is a compact (44 x 44 x 41mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like Global Shutter, One Trigger, Fix Trigger, Hard- & Software Trigger, Partial Scan, Binning, and frame rates up to 163.4f/s.

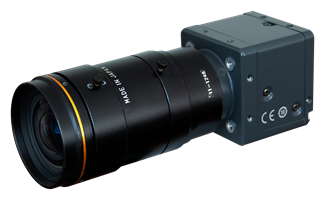

1.1” CMOS Color Progressive Scan Cameras with Mini CameraLink™. The KP-FMR1230WCL is a compact (44 x 44 x 41mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like Global Shutter, One Trigger, Fix Trigger, Hard- & Software Trigger, Partial Scan, Binning, and frame rates up to 67.1f/s.
Global Shutter CMOS Progressive Scan Camera with Mini CameraLink™. The KP-FM30WCL is a compact (29 x 29 x 29mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like global shutter, Frame On Demand, Selective Frame Rate and frame rates up to 523.5f/s with 720(H) × 540(V) imaging pixels.
Global Shutter CMOS Color Progressive Scan Camera with Mini CameraLink™. The KP-FM230WCL is a compact (29 x 29 x 29mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like global shutter, Frame On Demand, Selective Frame Rate and frame rates up to 92.6f/s with 1920(H) × 1200(V) imaging pixels.
Global Shutter CMOS Color Progressive Scan Camera with Mini CameraLink™. The KP-FM520WCL is a compact (29 x 29 x 29mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like global shutter, Frame On Demand, Selective Frame Rate and frame rates up to 35.7f/s with 2448(H) × 2048(V) imaging pixels.
2/3" CMOS Color Progressive Scan Cameras with Mini CameraLink™. The KP-FM530WCL is a compact (44 x 44 x 41mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like Global Shutter, One Trigger, Fix Trigger, Hard- & Software Trigger, Partial Scan, Binning, and frame rates up to 163.4f/s.
1.1” CMOS Color Progressive Scan Cameras with Mini CameraLink™. The KP-FM1230WCL is a compact (44 x 44 x 41mm) Color CMOS Camera series with Mini CameraLink™. A lot of useful functions are integrated like Global Shutter, One Trigger, Fix Trigger, Hard- & Software Trigger, Partial Scan, Binning, and frame rates up to 67.1f/s.
