Description

UHD-4K/HD Integrated Wireless Camera System

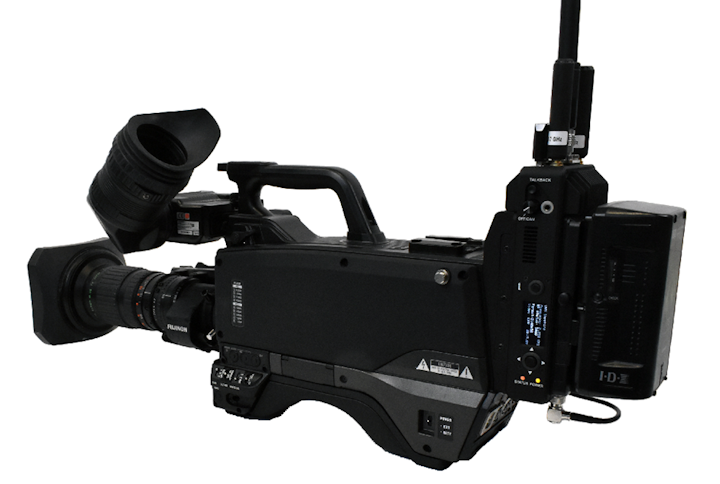

SK-UHD7000&QUARTZ 4K UHD/HD True 4K HEVC-COFDM integrated wireless camera system is designed to convert KOKUSAI DENKI SK-UHD/HD and Z-HD fibre broadcast cameras to wireless operation. It is a fully bidirectional remote-controllable with KOKUSAI DENKI standard remote control units. Wireless video transmission system for use in high-end Broadcast applications. With its streamlined camera body design, light weight and low center of gravity, hand-held shooting with a wireless camera has never been more comfortable. Operator safety is ensured by the low RF output power and transmit antenna design, ensuring all RF energy is radiated above the operator’s head.
The transceiver Quartz COFDM is equipped with a single video input capable of 3G HD-SDI, 6G,12G and 12G (4x1080p HFR) thus allowing video formats to UHD and HFR . Back-to-back V Lock battery plates facilitate pass-through power, whilst an additional external power connector is provided as the base as well as on camera for all system. Analogue stereo audio inputs are supported as well as camera control and Tally interfaces. An ASI transport stream interface is provided to facilitate easy connection to other modulation systems.
The Transmitter is equipped with a high-quality, low-latency H.265 (H.264 is also available) encoder capable of UHD and HD formats in 10bit 4:2:2 with automatic HDR support.
Up to 8 stereo pairs of audios in either MPEG-1 layer 1 or PCM format (4 stereo pairs in AAC-LC) can be extracted and encoded by the QUARTZ - TX whilst analogue audio inputs with power are included for direct microphone connection. Ore can be used Camera control and transmitter settings are accessible through a single colour panel on the side or using the web browser interface.

SK-UHD7000 QUARTZ Features

• SK-UHD7000 Quartz COFDM Transceiver, HEVC Encoding, 100mW COFDM forward link 1980-2700MHz, Bi-directional MESH IP link, including talkback
• Three 2/3-inch, 3840x2160 global shutter CMOS image sensors
• Single-link, 12G-SDI multi-format output with Embedded Audio
• 3G/1,5G HD or 12G-SDI 4K UHD with Optional License up-grade available
• 2.000 TVL UHD resolution, over 1,000 TVL HD resolution
• High Sensitivity better than F11
• >62dB Signal to noise ratio
• Network:          Mesh
• Video Encoding:      HEVC
• Video Resolutions:     4K UHD (With license), 1080p, 1080i, 720p, 575p, 4x1080p HFR (with License)
• Video Format:       4:2:2/4:2:0, 10bit
• Latency End to End:    <50mS 4K, <45mS 1080p (COFDM)
• Microphone in:         2 Channel XLR 3 (Camera Rear Panel)
• Intercom:          1 Channel XLR 5 (Mesh standard)
• Intercom leval adj:     On Frond of Camera Inc. Talk back switch
• Return Video:       Mesh IP (Option)
• Remote Control:      Bidirectional Camera control over Mesh
• Power Consumption:    Approx. 95 W (Camera & RF & 2 inch Viewfinder )
• Mass:            Approx. 5.7 kg (Camera & RF & Antanas & 2’’ VF)
• Operation Temperature:    -20 °C to +50 °C
• License:           UHD ,4x1080p HFR
• Battery Plate:         V-Lock
• DC IN:           4-pin XLR (DC12V) for camera and transmitter power
• DVB-T Modulation:     DVB-T Bandwidth: 8MHz, 7MHz and 6MHz modes
• DVB-T Guard:       1/32, 1/16, 1/8, 1/4
• DVB-T FEC:          1/2, 2/3, 3/4, 5/6, 7/8
• DVB-T Modulation:       QPSK, 16QAM, 64QAM
• Audio:            8 stereo pairs de-embedded or 1 x analogue stereo (line or microphone level)
• Remote Control:         Bidirectional return camera control
• Local Control:           Side Panel and web browser

Features QZRFCCU-H Receiver with Bidirectional Camera Control and talk-back Intercom

The RF -CCU has a high resolution touch-screen for control and monitoring of Fibre, RF and Control systems.It also has full web - browser control.

Specification

• Fibre: SMPTE Fibre interface to ODU
• RF input: 4xBNC(RF1,2,3,4) (50-850MHz) coaxial input from external downconverter
  RF 1&2 Not active if Fibre connection is available
  RF3,4 enable for external down converter with License.
• Genlock: BNC CVBS or Tri-Level
• Video Decoding: HEVC or MPEG4
• Video Resolutions: 4K UHD (License), 1080p, 1080i, 720p, 575p
• Video Format: 4:2:2/4:2:0, 10bit
• Latency End to End: <50mS 4K, <45mS 1080p
• Video Output: 12G-SDI and Dual LC Fibre I/O MoIP Video ST2110 (25G/10) fully redundant ST2022-7, NMOS (Option), JPEG-XS (Option)
• Audio: 8 stereo pairs embedded or 2 x analogue stereo
• ASI OUT; BNC
• Camera talk Back (Intercom) : Mesh
• Camera Control: Bi-directional, Ethernet IP connection to RCP
• Control: Front Panel OLED display touchscreen (local control ) or network Web Browser control interface RS232 Control from PC GUI Application (remote control)
• Tally: 4 Pin Lemo (Red/Green Tally )
• Ethernet: 2x10/100/1G Ethernet Ports with PoE
  Function: remote Control via web-browser
• Dimension: 1RU 19" Rack
• Power: 2xIEC C14 Connector s with automatic Fail-over

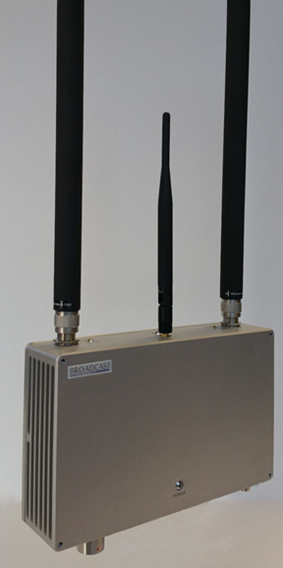

QZODU Outdoor Unit with Diversity Receive and SMPTE Fibre

A ruggedized, weatherproof unit housing the two diversity receive antennas for 4K/2K video and audio signals and the MESH transceiver for talkback, telemetry and return video etc. It is tripod and should be placed at the optimum reception location for the RF signals.

SYSTEM CONFIGURATION

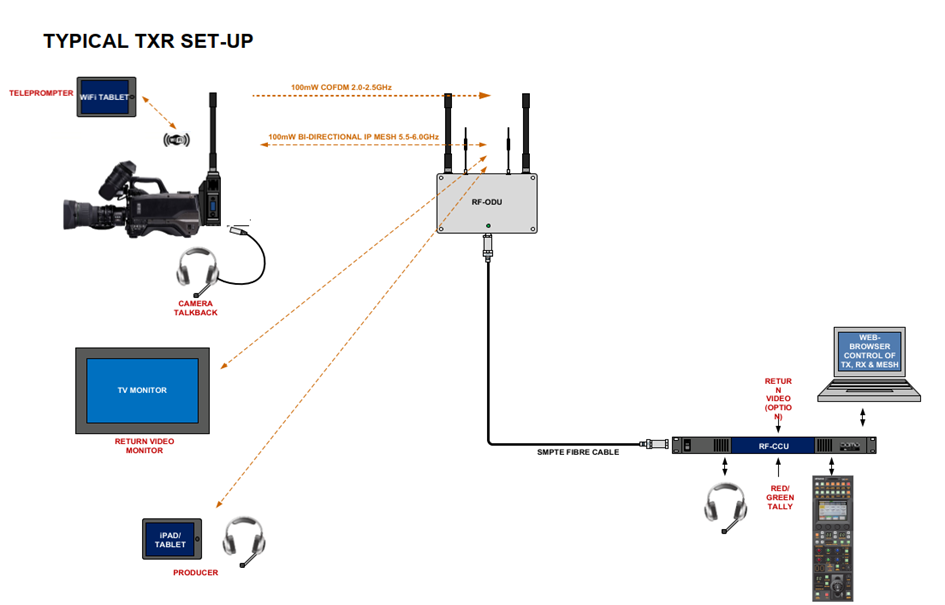

• BASIC SYSTEM WITH RF ODU WITH MESH INTERCOM AND RETURN VIDEO OPTION

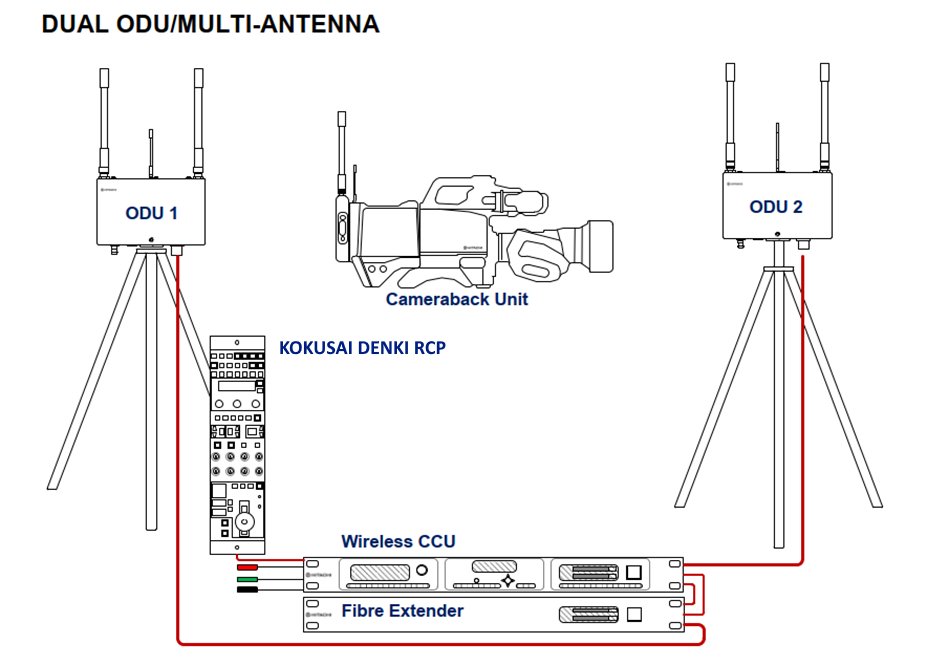

• DUAL ODU / MULTI-ANTENNA

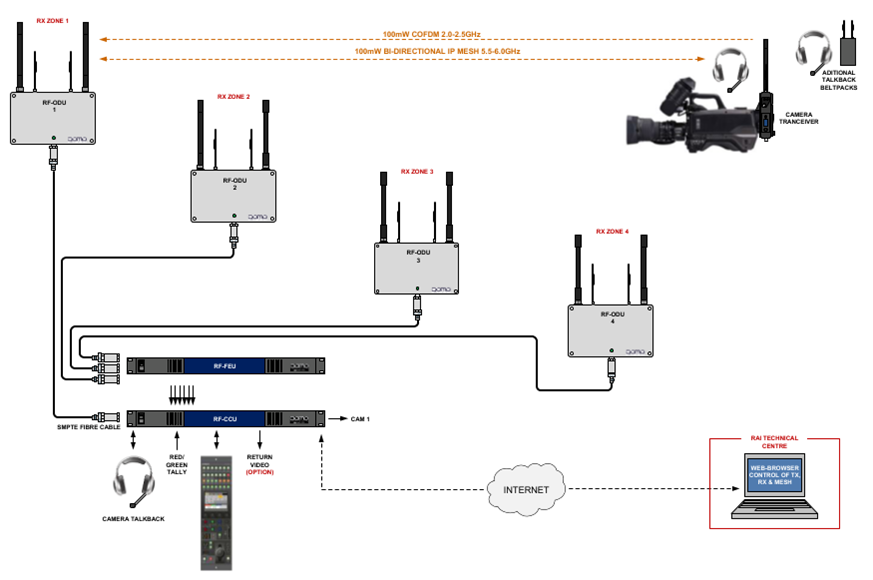

• QUAD ODU-OUTDOOR UNIT’S /MULTI ANTENNA SYSTEM WITH OPTIONAL UNITS

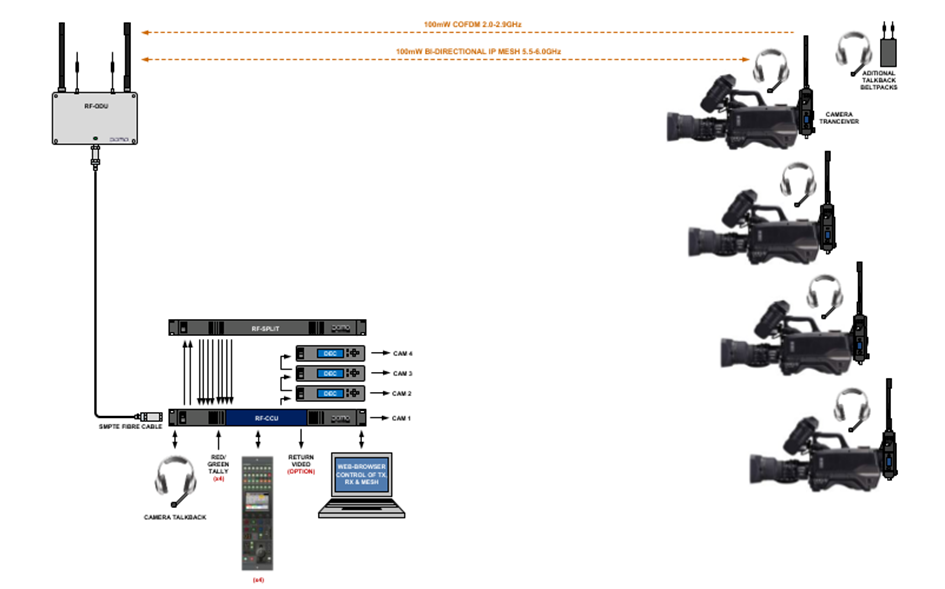

• ONE ODU-OUTDOOR ANTENNA / QUAD CAMERA SYSTEM WITH OPTIONAL UNITS

(multi-camera system (up to 4 cameras) using a single RF-CCU, external RF splitters and external decoders.)

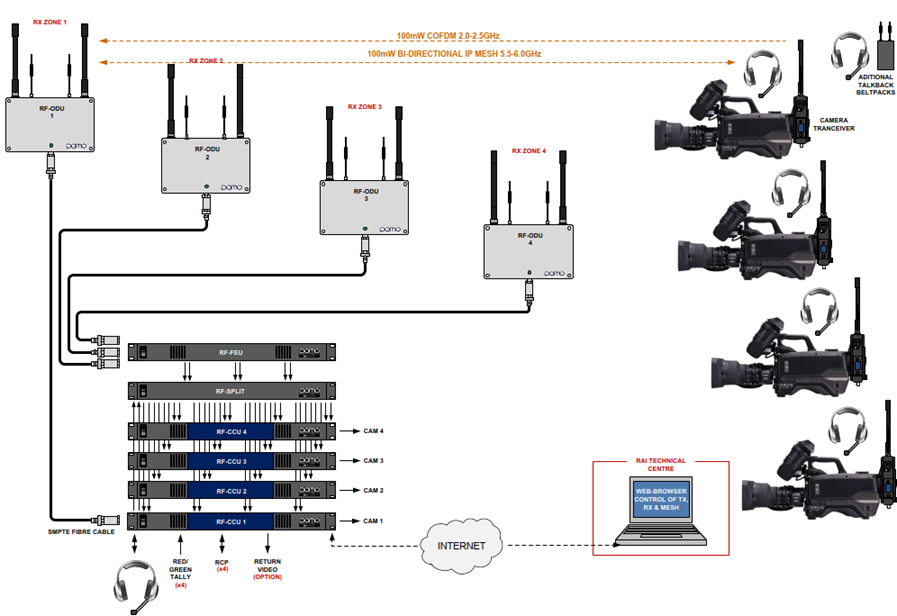

• MULTI-CAMERA SYSTEM (up to 4 cameras) USING 4X RF-CCUs SHARING ANTENNAS from ODUs
