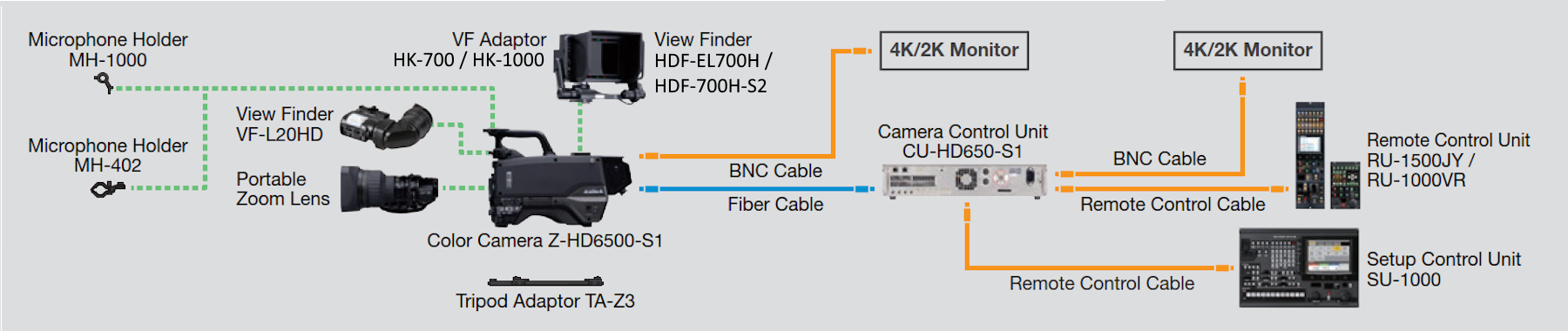

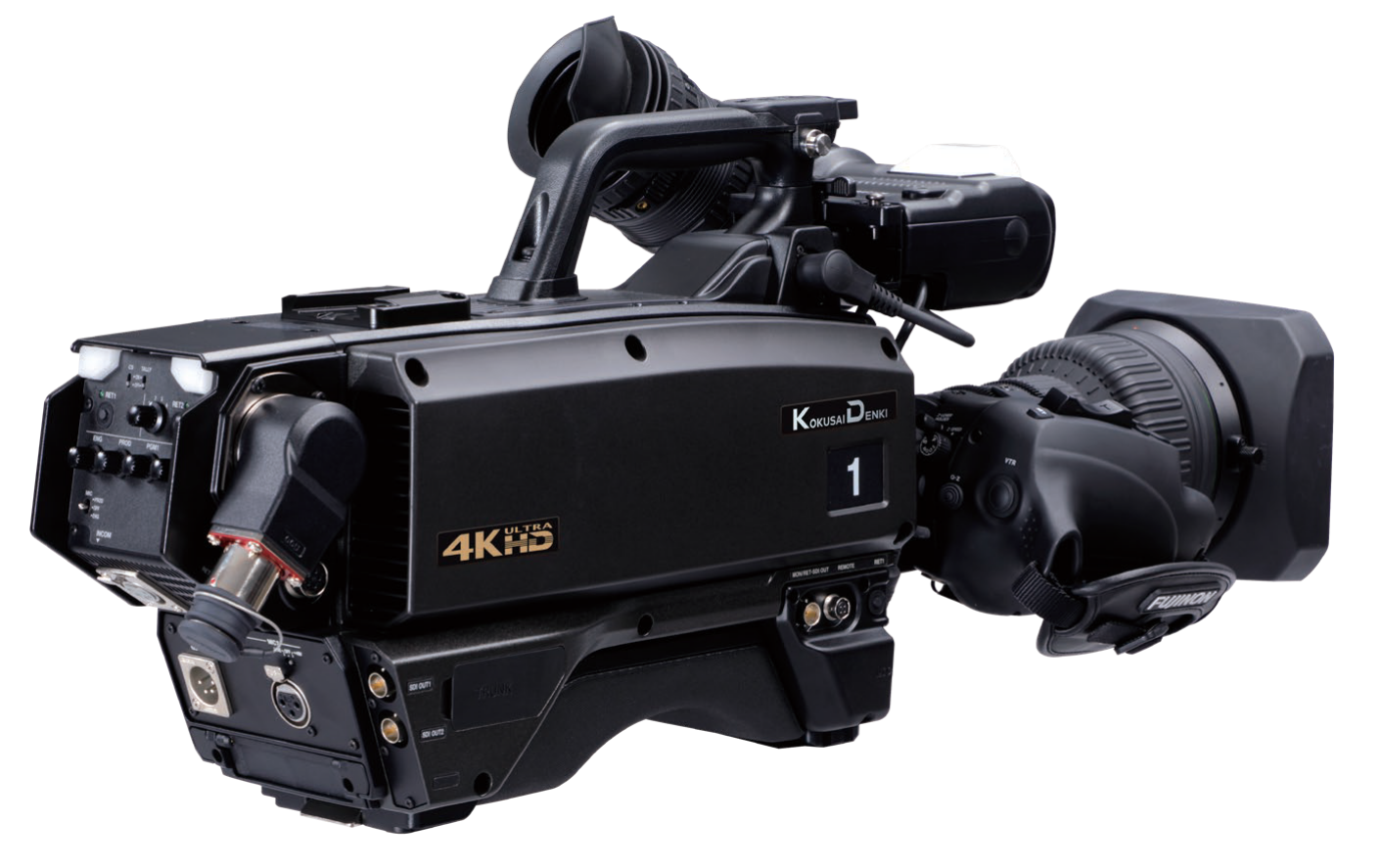

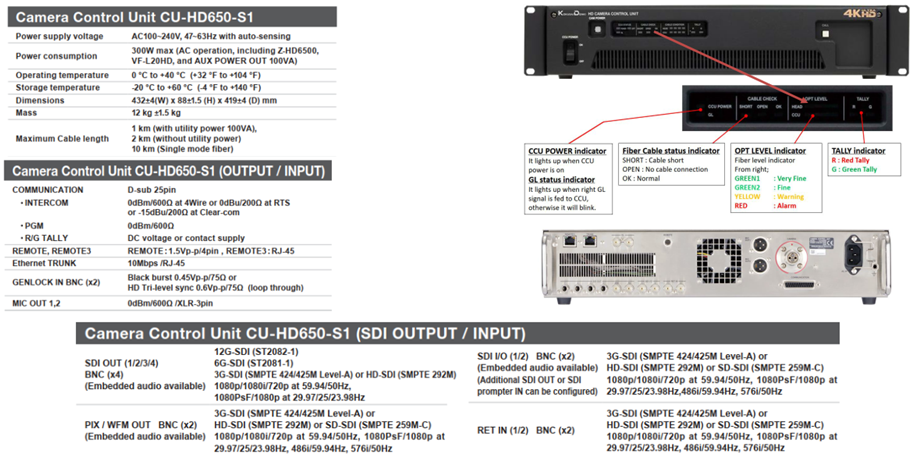

The Z-HD6500-S1 connects to its CCU, the CU-HD650-S1, via SMPTE 311M hybrid fiber optic cable over distances of up to 2,000 metres connects, providing transmission of full-bandwidth, uncompressed, native 4K video. With its Integrated HD down-conversion it also provides 1080p, 1080i, or 720p HD output for flexible, multi-format production capability. Embedded audio is available on all SDI outputs and as listen-channels on the intercom. An ethernet data trunk interface supports control of TCP/IP-capable devices. The CU-HD650-S1 has 12G/6G-SDI outputs for 4K(3840x2160) video and selectable 3G/HD/SD-SDI outputs for down-converted HD/SD video. External 3G/HD/SD-SDI return video can be displayed on the camera viewfinder through a built-in cross-converter and frame-synchroniser. The CCU has independent 4K and HD processors enabling it to output HDR and SDR simultaneously and provide independent control of detail enhancement for the down-converted HD output.

The high-performance touchscreen Remote Control Unit RU-1500JY-R1/-S3/S11 is connected to the Camera Control Unit (CCU) for remote operation of the camera or directly to the SK-HD camera series or Z-HD camera series. The RU-1500JY-S3&S11 has at on the top panel are lit by back light. Operators can see signs on the panel in the dark operation room.

All key Camera Control functions, such as the one touch color temperature function, makes the RU-1500JY-R1/-S3/S11 ideal not only for professional TV studios but also for OB van use. Lens iris control, pedestal control and preview switch are assembled with an axis joystick control knob (RU-1500JY/-S3/S11). The camera can be easily adjusted using the 3.5 inch LCD touchscreen panel and rotary encoders. Custom switches further support the professional user in designing a personal workflow.

Main control items are:

Camera power on/off, auto setup execution, save data file (scene file 0 to 8), manual adjustment using the rotary encoder and knobs, various on/off controls, PIX & WF video output select.

Network Control: RJ-45 TCP/IP

*Lens & Camera should support

High-performance touchscreen Slim Size Remote Control Unit.

Main Features Direct Switches for Optical filter | GAIN | Shutter | Scene file Paint/Gamma and Black/Flare switch buttons PoE Backlit on panel & LED B.light Control Quick response LCD panel New functions - Status Menus - Lens　Control: Zoom, Focus, Back focus VR （Center Detent） USB interface

RU-1000: Small form-factor, basic remote control panel.

The RU-1000VR is a compact remote operation panel designed for easy operation of standard camera functions. Iris and master black adjustments employ "VR-type" rotary knob controls and commonly used controls and functions are directly and instantaneously accessible to the video control engineer.

The SU-1000 Setup Control Unit is used for the adjustment of camera parameters in a multi-camera production environment.Utilizing a new wide touch screen LCD panel that expands control functions.

It is connected directly to each CCU in parallel fashion via serial data cable, 12 cameras can be directly controlled from the SU-1000. Serial Camera control can be extended from 12 cameras up to 48 cameras(option).

RJ45 Network control up to 128 camera with a distance of up to 100 meters (with repeater this can be extended).

The compact and lightweight SU-1000 features Color LCD indicators in the display section to easily identify and access the provided control parameters. The unit is sufficiently small and lightweight enough to be used in space deprived locations such as encountered on a broadcast OB Van.

The SU-1000 has these primary functions:

• Selection of a single camera or groups of cameras to be controlled.
• On/Off control of all functions.
• Control of all variable data adjustments including Iris & Master black.
• Selection of storage and operation data files.
• Transfer of files and data between cameras or groups of cameras.
• Adjustment and file data (write/ read) from SD memory card
• Video output selection including external video switcher control (source or sink).
• Ethernet connectivity and cabling

VF-L20HD: 2-inch LCD Viewfinder

VF-EL20HD / VF-EL20HD-S1: 0,7" OLED viewfinder with 2" optical loupe and 3,5 inch LCD (S1 version)

Overview

Nature 16:9 format 7 inch LCD or OLED
Super Wide Viewing angle: Up & Down/ Left & Right
High density display
Fast response time
Large size of the front TALLY is adopted.
The brightness is selectable in Hi/Low/OFF.
Focus assist, Peaking
Many kinds of measurement functions
Waveform, Vector scope, Zebra, Audio level meter
Solid and thin lightweight design
Several type pan-tilt mechanism.
External SDI-IN
12V DC IN

Viewfinder HDF models

with HK-1000 mount adapter

with HK-1000 mount adapter

* Other Compatible adaptors: HK-700, AT-90 and AT-500

HDF-700H-S2: 7-inch LCD Full HD Viewfinder

Panel type	Color TFT LCD
Panel size	7 - inch
Panel aspect ratio	16:9
Picture Resolution	1920(H)x1080(V)
Viewing Angle	178°(H),178°(V)
Brigtness / Contrast	450 cd/m2 / 1.100:1
Response Time	Fast Response Time
Function	Brightness, Contrast, Peaking Focus Assist, Marker Waveform, Vector scope
Tally	Red/Green
Weight	app. 1.35kg
Power consumption	app. 12W
EXTERNAL SDI IN	BNCx1 1080P*/1080i
Operation temperature	-20°C to +50°C
Viewfinder Adaptors Option	HK-700 / HK-1000 / AT-951-S2

* Can be connected to the camera for 1080p Viewfinder Image

HDF-EL700H: 7-inch OLED HD Viewfinder

Panel type	Color OLED 16:9
Panel size	7 - inch
Panel aspect ratio	16:9
Picture Resolution	1280 (H) x 720 (V) Effective Pixels
Viewing Angle	170°(H),170°(V)
Brigtness / Contrast	770 cd/m2 / 1.100:1
Response Time	Fast Response Time
Function	Brightness, Contrast, Peaking Focus Assist, Marker Waveform, Vector scope
Tally	Red/Green
Weight	app. 1.35kg
Power consumption	app. 12W
EXTERNAL SDI IN	BNCx1 1080P*/1080i
Operation temperature	-20°C to +50°C
Viewfinder Adaptors Option	HK-700 / HK-1000 / AT-951-S2

* Can be connected to the camera for 1080p Viewfinder Image

Optional Accessories

HFC-777LK Fixed Long Hood

HFC-777LM Movable Long Hood

9” LCD Color (16:9) Viewfinder

with AT-951-S2 mount adapter.
