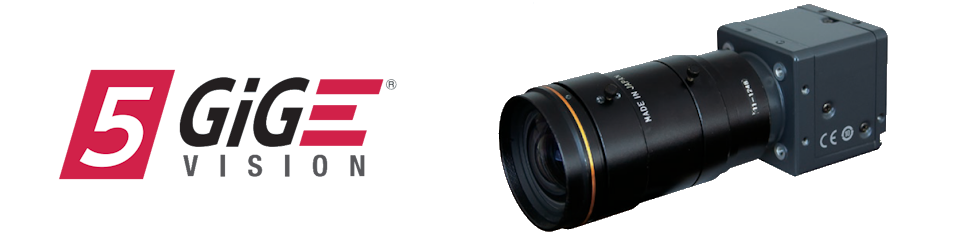

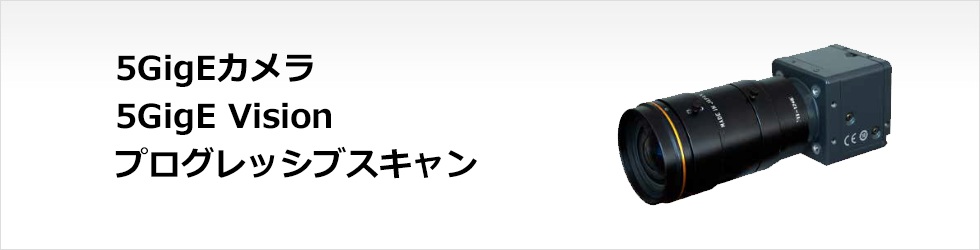

5GigE Vision Progressive Scan Cameras - KP-FMD250GV

5GigE Vision Progressive Scan Cameras

The 5GigE Camera (5GigE Vision Progressive Scan Camera) combines high image quality, high speed, and long-distance transmission. With PoE (Power over Ethernet) connectivity and compatibility with intelligent hubs, it enables simple and flexible system construction.

  • No frame grabber required: The camera connects directly to a PC and supports software triggering.
  • Monochrome and color models available: Meets diverse on-site requirements.
  • High-speed transmission: Achieves approximately five times the speed of 1GigE cameras, with a maximum transmission distance of 100 meters.
  • Lineup: Available in 2MP (200 fps), 5MP (100 fps), and 12MP (40 fps) models.
  • Applications: Ideal for high-speed, high-precision inspection and remote monitoring in manufacturing, robotics, automotive, and plant industries.
Lineup 2 megapixel type 5 megapixel type 12 megapixel type
Model Name B/W: KP-FM250GV
Color: KP-FMD250GV		 B/W: KP-FM550GV
Color: KP-FMD550GV		 B/W: KP-FM1250GV
Color: KP-FMD1250GV
Image sensor 1/1.7" CMOS 2/3" CMOS 1.1" CMOS
Effective pixels 2048(H) x 1200(V) 2448(H) x 2048(V) 4096(H) x 3072(V)
Pixel size 4.0µm×4.0µm 3.4µm×3.4µm
Imaging area 8.19mm×4.8mm 8.32mm×6.96mm 13.95mm×10.44mm
Lens mount C-mount
Video Output Gigabit Ethernet GigE Vision compliant 5Gbps
Mono8/10/12bit RGB/YCrCb/Mono/Bayer(Color)
Frame rate 195fps(8bit) 100fps(8bit) 42fps(8bit)
Resolution 1200 TV lines (B/W)
840 TV lines (Color)		 2000 TV lines (B/W)
1400 TV lines (Color)		 3000 TV lines (B/W)
2100 TV lines (Color)
S/N Ratio 48dB
Electronic Shutter 1/60 to 1/50,000 sec. 8-step and variable shutter
External Trigger Fixed shutter, ONE trigger (software/hardware)
Partial Scan The capture start position and capture width can be set arbitrarily.
Power Supply DC12V±1V or PoE(IEEE802.3af）
Power Consumption Approx. 6.0W Approx. 6.6W Approx. 7.2W
Operating temperature 0～40°C/RH90% or less
Storage temperature -20～60°C/RH70% or less
Dimensions / Weight 44(W)×44(H)×41(D)mm, Approx. 140g
