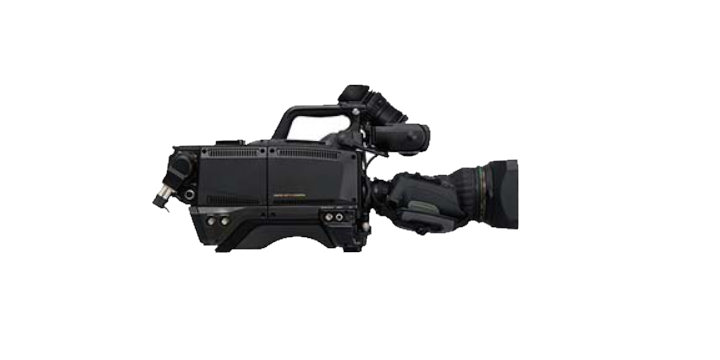

SK-HD1300E/-S1

SK-HD1300E/-S1

Description

Universal Camera System (1.5G / 3G / 4K)

Multi-format HDTV production camera

The SK-HD1300E/-S1 is a multi-format portable HDTV studio camera. The new 2.6 million 3 chip 2/3 inch MOS sensors produce outstanding image performance. The camera offers progressive HD images due to KOKUSAI DENKI’s implementation of the latest 3-MOS imaging technology. New achievements in high sensitivity and no vertical smear have been reached as a result.

KOKUSAI DENKI’s advanced digital signal processing

Each essential part of the KOKUSAI DENKI SK-HD1300E/-S1 camera system has its own DSP processor. Specialized DSP processors are used independently for the HDTV camera head, the transmission system and the Camera Control Unit (CCU) processing. The new, power efficient KOKUSAI DENKI’s DSP processors are designed to work with any 2K imaging technology that is in the near future, thus, offering a high ROI. (Return On Investment). An outstanding overall signal-to-noise ratio specification of 62dB is achieved by use of our own low-noise circuit technology. The standard sensitivity is rated at F11@50Hz (SK-HD1300E/-S1) with 2000 lx. Even at high gain, clear images are obtained with little noise. Also high horizontal resolution performance of 1100TVL (Luminance channel) is the pinnacle of picture sharpness and is an attribute to the claim of having the most transparent signal processing path of any KOKUSAI DENKI digital camera manufactured to date.

Real-time Lens Aberration Correction (RLAC)

Modern HDTV lenses can still produce optical distortions. One of these called “lateral chromatic aberration” can be reduced in certain lens models when used with the SK-HD1300E/-S1 camera system. The KOKUSAI DENKI function is called RLAC (Real-time Lens Aberration Correction) and it dynamically corrects images using correction data provided by the lens through a digital interface with the camera.

Features

Luminance response tools:
  • HDR
  • Black Gamma
  • Black Stretch
  • Ultra-Gamma
  • Auto-Knee
  • Knee Point
    		•
    Color reproduction tools:
  • BT.2020
  • Triple Masking
  • Preset Masking
  • Knee Saturation
  • Chroma Saturation
  • Auto Chroma
    		•
    Picture sharpness tools:
  • High-chroma Detail
  • Skin Tone Detail
    		•
    Other Useful Production Features:
  • Prompter and floor monitor power
  • Floor Monitor Digital Video
  • Professional Audio connectors
  • Focus Assist
  • Gray-Scale automatic setup
  • SD Card Slot
  • Tracker Intercom as option
  • RJ-45 Trunk as option
    		•

    Download

    Configuration

    Broadcast Configuration

    Camera Adapter

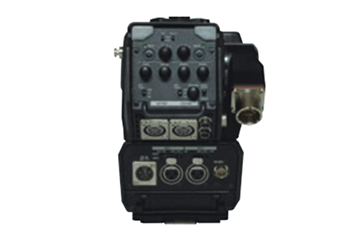

    CA-HF1300E-S3

    CA-HF1300E-S3

    Camera Adapter (Triax)

    CCU connector: 1 x HFOC female connector (LEMO) SMPTE-304M-type
    Intercom: 2 x channel 5-pin each XLR. MIC on/off, ENG/PD level control, Tracker level control
    Program audio:

    2 x PGM audio level controls with Channel 1 & Channel 2 intercom mix
    Teleprompter power output: 1 x 5-pin. AC 230 V/100 VA. external prompter R/G Tally drive out
    Microphones: Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
    Return/Aux switcher: 4 x input remote AUX/VF video select connector (RET control)
    Video in- & outputs: 1 x HD-SDI out
    3G-SDI (l080p50/59.94) : SMPTE424/425 Level-A
    HD-SDI (1080i50159.94) SMPTE292M
    1 x HD-SDI2 OUT, RET B output: SMPTE292M
    1 x SD analog teleprompter out sheared with Genlock in
    Other I/O: 1 x 29-pin (for SA-1100 cable-less interface, female)
    1 x 5-pin script lamp DC 12V (1A max/female)
    1 x 6-pin VF AUX return (female/for use in cranes or extended Head/
    VF configurations)
    1 x R05-R8F 8-pin TRUNK RS-422 or RS-232C female (option)
    1 x XLR 4-pin. DC 12V power input (male)
    Dimensions: 133(W)x189(H) x194(D)mm
    Weight: app. 2.2 kg, (4.8 lbs)
    Operating temperature: -10°C to +45°C (14°F to 114°F)

    CA-HF1300E

    CA-HF1300E

    Camera Adapter (Fiber)

    CCU connector:

    1 x HFOC female connector (LEMO) SMPTE-304M-type
    Intercom: 2 x channel 5-pin each XLR. MIC on/off, ENG/PD level control, Tracker level control
    Program audio: 2 x PGM audio level controls with Channel 1 & Channel 2 intercom mix
    Teleprompter power output: 1 x 5-pin. AC 230 V/100 VA. external prompter R/G Tally drive out
    Microphones: Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
    Return/Aux switcher: 4 x input remote AUX/VF video select connector (RET control)
    Video in- & outputs:

    1 x HD-SDI1 OUT, 3G-SDI/HD-SDI,
    3G-SDI (l080p50/59.94) : SMPTE424/425 Level-A
    HD-SDI (1080i50159.94) SMPTE292M
    1 x HD-SDI2 OUT, RET B output: SMPTE292M
    1 x SD analog teleprompter out sheared with Genlock in
    Other I/O:

    1 x 29-pin (for SA-1100 cable-less interface, female)
    1 x 5-pin script lamp DC 12V (1A max/female)
    1 x 6-pin VF AUX return (female/for use in cranes or extended Head/
    VF configurations)
    1 x R05-R8F 8-pin TRUNK RS-422 or RS-232C female (option)
    1 x XLR 4-pin. DC 12V power input (male)
    Dimensions: 133(W)x189(H) x194(D)mm
    Weight: app. 2.2 kg, (4.8 lbs)
    Operating temperature: -10°C to +45°C (14°F to 114°F)

    CX-HD1300E

    CX-HD1300E

    Camera Adapter (Triax)

    CCU connector: 1 x-Triax connector (Fiber)
    Video transmission system: Fully digital bi-directional. 10-bit, 4:2:2 sampling, 3G (1080p50/59.94)
    Intercom: 2 x channel, 5-pin each XLR, MIC on/off, ENG/PD level control. Tracker level control
    Program audio: 2 x PGM audio level controls with Channel 1 & Channel 2 intercom mix
    Teleprompter power output: 1 x 5-pin. AC 230 V/100 VA. external prompter R/G Tally drive out
    Microphones: Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
    Return/Aux switcher: Remote AUX/VF video select connector (RET control)
    Video in- & outputs: 2 x HD-SDI 1/3 OUT, 3G-SDI/HD-SDI
    3G-SDI (1O8Op5O/59,94): SMPTE424/425 Level-A
    HD-SDI (1080i50/59.94): SMPTE292M
    1 x HD-SDI 2 OUT - 3G-SDI or HD-SDI
    3G-SDI (l080pSO/59.94): SMPTE424/425 Level-A
    HD-SDI (1080i50/59.94): SMPTE292M
    1 x SD analog prompter out shared with Genlock in
    Other I/O: 1 x 29-pin (for SA-1100 cable-less interface, female)
    1 x 5-pin script lamp DC 12V (1.0 A max., female)
    1 x 6-pin VF AUX return (female/for use in cranes or extended Head/VF configurations)
    1 x XLR 4-pin, DC 12V power input (male)
    Dimensions: 142(W)x 1B8(H)x202(D) mm
    Weight: app 2.6 kg, (5.7 lbs.)
    Operating temperature: -10 °C to +45 °C, (14 °F to +114 °F)

    CA-HF550E

    CA-HD550ECA-HD550E

    Camera Adapter (Fiber)

    CCU connector: 1 x HFOC female connector (LEMO) SMPTE-304M-type
    Intercom: 1 channel with 5-pin XLR Headset connector. MIC off/ENG/PROD. Headset Level controls for ENG and PROD Intercom.
    Program audio: 2 x PGM audio level controls with intercom mix
    AC 230V output: 1 x 5-pin. AC 230 V/100 VA Power Output. Tally drive out.
    Microphones: Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
    Video input & outputs: 2x HD-SDI/RET1/2 OUT (Camera/Return switchable)
  • 3G-SDI (1080p50/59.94): SMPTE424/425 Level-A
  • HD-SDI (1080i50/59.94, 720p50/59.94): SMPTE292M
    		•
    Other I/O: 1x XLR 4-pin, 12VDC power input (male)
    Dimensions: 137 (W) x 188 (H) x 201 (D)
    Weight: 2.2 kg, (4.8 lbs) approximately
    Operating temperature: -10 °C to +45 °C, (14 °F to +114 °F)

    Camera Control Units

    CU-HD1300FE/-S1

    CU-HD1300FE/-S1

    Fiber CCU with 3G Video transmission system with fiber connector (Lemo).

    GENLOCK IN: 1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
    RETURN IN (1/2/3/4): 2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI,
    RETURN B IN (1/2): 3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C
    PROMPT IN: 1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
    INTERCOM (HEAD SET): 5-pin XLR, -60dBm
    COMMUNICATION: 1x D-sub 25-pin, Incom, Tally
    INTERCOM: 0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire,
    (ENG, PROD) Clear-Com and RTS compatible
    PGM: 0dBm / 600 Ω
    R/G TALLY IN: Contact or Voltage selectable
    REMOTE 1: 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    REMOTE 3: 1x RJ-45
    12G-SDI OUT: 2 x BNC, 12G-SDI, (option with –S1 type).
    Square division or 2 sample interleave division
    12G-SDI: SMPTE 424/425 Level A/B
    4K OUT: 4 x BNC, 3G-SDI, embedded audio available (option with –S1 type).
    Square division or 2 sample interleave division
    3G-SDI: SMPTE 424/425 Level A/B
    HD/SD OUT (1/2/3): 6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available)
    3G-SDI: SMPTE 424/425 Level A
    HD-SDI: SMPTE 292M
    SD-SDI: SMPTE 259M-C
    PIX/WFW OUT: 1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio)
    3G-SDI: SMPTE 424/425 Level-A
    HD-SDI: SMPTE 292M
    SD-SDI: SMPTE 259M-C
    MIC OUT 1: 1x XLR, 3-pin, 0dBm / 600 Ω
    MIC OUT 2: 1x XLR, 3-pin, 0dBm / 600 Ω
    INTERCOM (HEAD SET): 1x XLR, 5-pin, 0dBu Max. +15dB
    REMOTE 1: 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    REMOTE 3: 1x RJ-45
    COMMUNICATION: 1x D-sub 25-pin
    INTERCOM: 0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM)
    TALLY OUT (R/G): 1x D-sub 9-pin, Contact 24VDC, 10 mA
    WFM CONTROL: 1x D-sub 15-pin WFM 0-7,0/ 5V
    Power supply voltage: 100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
    Mass: 11 kg, 24.3 lbs. approx.
    Dimension: 432 (W) × 88 (H) × 419 (D) mm, 2 RU
    Operating temperature: 0°C to 40°C, 32°F to 104°F
    Power consumption: 300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA)

    CU-HD1300FTE/-S1

    CU-HD1300FTE/-S1

    Friax & fiber CCU with 3G Video transmission system with fiber connector (Lemo) & triax connector (Fischer).

    GENLOCK IN: 1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
    RETURN IN (1/2/3/4): 2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI,
    RETURN B IN (1/2): 3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C
    PROMPT IN: 1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
    INTERCOM (HEAD SET): 5-pin XLR, -60dBm
    COMMUNICATION: 1x D-sub 25-pin, Incom, Tally
    INTERCOM: 0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire,
    (ENG, PROD) Clear-Com and RTS compatible
    PGM: 0dBm / 600 Ω
    R/G TALLY IN: Contact or Voltage selectable
    REMOTE 1: 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    REMOTE 3: 1x RJ-45
    12G-SDI OUT: 2 x BNC, 12G-SDI, (option with –S1 type).
    Square division or 2 sample interleave division
    12G-SDI: SMPTE 424/425 Level A/B
    4K OUT: 4 x BNC, 3G-SDI, embedded audio available (option with –S1 type).
    Square division or 2 sample interleave division
    3G-SDI: SMPTE 424/425 Level A/B
    HD/SD OUT (1/2/3): 6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available)
    3G-SDI: SMPTE 424/425 Level A
    HD-SDI: SMPTE 292M
    SD-SDI: SMPTE 259M-C
    PIX/WFW OUT: 1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio)
    3G-SDI: SMPTE 424/425 Level-A
    HD-SDI: SMPTE 292M
    SD-SDI: SMPTE 259M-C
    MIC OUT 1: 1x XLR, 3-pin, 0dBm / 600 Ω
    MIC OUT 2: 1x XLR, 3-pin, 0dBm / 600 Ω
    INTERCOM (HEAD SET): 1x XLR, 5-pin, 0dBu Max. +15dB
    REMOTE 1: 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    REMOTE 3: 1x RJ-45
    COMMUNICATION: 1x D-sub 25-pin
    INTERCOM: 0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM)
    TALLY OUT (R/G): 1x D-sub 9-pin, Contact 24VDC, 10 mA
    WFM CONTROL: 1x D-sub 15-pin WFM 0-7,0/ 5V
    Power supply voltage: 100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
    Mass: 11 kg, 24.3 lbs. approx.
    Dimension: 432 (W) × 88 (H) × 419 (D) mm, 2 RU
    Operating temperature: 0°C to 40°C, 32°F to 104°F
    Power consumption: 300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA)

    CU-HD1300TE

    CU-HD1300TE

    Triax CCU with 3G Video transmission system with triax connector (Fischer).

    GENLOCK IN: 1x BNC, B-BST 0.45Vp-p/75 Ω (loop through),
    HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
    RETURN IN (1/2): 2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI, 3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C
    PROMPT IN: 1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
    INTERCOM (HEAD SET): 5-pin XLR, -60dBm
    COMMUNICATION: 1x D-sub 25-pin, Incom, Tally
    INTERCOM: 0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire,
    (ENG, PROD) Clear-Com and RTS compatible
    PGM: 0dBm / 600 Ω
    R/G TALLY IN: Contact or Voltage selectable
    REMOTE 1: 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    REMOTE 3: 1x RJ-45
    HD/SD OUT (1/2/3): 6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available)
    3G-SDI: SMPTE 424/425 Level-A
    HD-SDI: SMPTE 292M
    SD-SDI: SMPTE 259M-C
    PIX/WFW OUT: 1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio)
    3G-SDI: SMPTE 424/425 Level-A
    HD-SDI: SMPTE 292M
    SD-SDI: SMPTE 259M-C
    MIC OUT 1: 1x XLR, 3-pin, 0dBm / 600 Ω
    MIC OUT 2: 1x XLR, 3-pin, 0dBm / 600 Ω
    INTERCOM (HEAD SET): 1x XLR, 5-pin, 0dBu Max. +15dB
    REMOTE 1: 1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    REMOTE 3: 1x RJ-45
    COMMUNICATION: 1x D-sub 25-pin
    INTERCOM: 0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM)
    TALLY OUT (R/G): 1x D-sub 9-pin, Contact 24VDC, 10 mA
    WFM CONTROL: 1x D-sub 15-pin WFM 0-7,0/ 5V
    Power supply voltage: 100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
    Mass: 11 kg, 24.3 lbs. approx.
    Dimension: 432 (W) × 88 (H) × 419 (D) mm, 2 RU
    Operating temperature: 0°C to 40°C, 32°F to 104°F
    Power consumption: 300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA)

    CU-HD500

    CU-HD500

    Fiber CCU with 1,5G Video transmission system with fiber connector (Lemo).

    GENLOCK IN: 1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
    RETURN IN (1/2): 1x BNC, HD SDI or SD SDI
    PROMPT IN: 1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
    INTERCOM (HEAD SET): 5-pin XLR, -60dBm
    COMMUNICATION: 1x D-sub 25-pin, Incom, Tally
    INTERCOM: 0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire
    PGM: 0dBm / 600 Ω
    R/G TALLY IN: Contact or DC supply
    HD/SD OUT: 2x BNC, HD-SDI (embedded audio available)
    4 x BNC, HD-SDI or SD-SDI selectable (embedded audio available)
    HD-SDI or SD-SDI selectable PIX (embedded audio available)
    MIC OUT 1: 1x XLR, 3-pin, 0dBm / 600 Ω
    MIC OUT 2: 1x XLR, 3-pin, 0dBm / 600 Ω
    INTERCOM (HEAD SET): 1x XLR, 5-pin, 0dBu Max. +15dB
    REMOTE 1: 1x 4-pin, 1.5Vp-p
    REMOTE 2: 1x 4-pin, 1.5Vp-p
    MIC REMOTE: 1x D-sub 25-pin MIC 1.2 GAIN
    TALLY OUT (R/G): 1x D-sub 9-pin, Contact 24VDC, 10 mA
    WFM CONTROL: 1x D-sub 15-pin WFM 0-7,0/ 5V
    Power supply voltage: 230VAC, 50Hz
    Mass: 9 kg, 15.4 lbs. approx.
    Dimension: 432 (W) × 88 (H) × 419 (D) mm, 2 RU
    Operating temperature: 0°C to 40°C, 32°F to 104°F
    Power consumption: 300W app. (AC operation, incl. Z-HD6000, VF-L20HD & AUX power out 100VA)

    CU-HD550FE

    CU-HD550FE

    Fiber CCU with 3G Video transmission system with fiber connector (Lemo).

    GENLOCK IN: 1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
    RETURN IN (1/2): 2x BNC, 3G-SDI or HD-SDI or SD-SDI
  • 3G-SDI : SMPTE424/425 Level-A
  • HD-SDI : SMPTE292M
  • SD-SDI : SMPTE259M-C
    		•
    COMMUNICATION: 1x D-sub 25-pin, Incom, Tally
    INTERCOM: 0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire, (ENG, PROD) Clear-Com and RTS compatible
    PGM: 0dBm / 600 Ω
    R/G TALLY IN: Contact or Voltage selectable
    HD/SD OUT (1/2): 4x BNC, 3G-SDI or HD-SDI or SD-SDI selectable (Embedded 2-Chnl audio available)
  • 3G-SDI : SMPTE424/425 Level-A
  • HD-SDI : SMPTE292M
  • SD-SDI : SMPTE259M-C
    		•
    PIX/WFM OUT: 2x BNC, 3G-SDI or HD-SDI or SD-SDI selectable (Embedded 2-Chnl audio available)
  • 3G-SDI : SMPTE424/425 Level-A
  • HD-SDI : SMPTE292M
  • SD-SDI : SMPTE259M-C
    		•
    MIC OUT 1: 1x XLR, 3-pin, 0dBm / 600 Ω
    MIC OUT 2: 1x XLR, 3-pin, 0dBm / 600 Ω
    REMOTE 1: 1x 4-pin, 1.5Vp-p
    REMOTE 2: 1x RJ-45
    Power supply voltage: 100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
    Mass: 10 kg, 22 lbs. approx.
    Power consumption: 300W approx. (AC operation, incl. SK-HD1800 or Z-HD5500, CA-HF550, VF-L20HD and AUX power out 100VA)
    Operating temperature: 0°C to 40°C, 32°F to 104°F

    Viewfinder

    HDF-700H-S1/S2

    HDF-700H-S2Viewfinder HDF-700H-S2
    Viewfinder HDF-700H-S2 with HK-1000 mount adapterViewfinder HDF-700H-S2 with HK-1000 mount adapter
    HDF-700H-S2• Viewfinder HDF-700H-S1 with HK-700 mount adapter

    Viewfinder

    7-inch LCD Full HD Viewfinder HDF-700H-S1/S2

    Panel type TFT LCD
    Panel size 7 - inch
    Panel aspect ratio 16:9
    Picture Resolution 1920(H)x1080(V)
    Viewing Angle 178°(H),178°(V)
    Brigtness / Contrast 450 cd/m2 / 1.100:1
    Response Time Fast Response Time
    Function Brightness, Contrast, Peaking
    Focus Assist, Marker
    Waveform, Vector scope
    Tally Red/Green
    Weight app. 1.35kg
    Power consumption app. 12W
    EXTERNAL SDI IN BNCx1 1080P*/1080i
    Operation temperature -20°C to +50°C
    Viewfinder Adaptors Option HK-700 /HK-1000/AT-951-S2

    * Can be connected to the camera for 1080p Viewfinder Image

    Optional Accessories

    HFC-777LK Fixed Long Hood

    HFC-777LM Movable Long Hood

    VF-L90HD / AT-90 / AT-951

    VF-L90HD

    Viewfinder

    9” LCD Color (16:9) Viewfinder

    Number of pixel: 1280(H) x 768(V)
    Angle of view: up and down 170°, left and right 170°
    Marker: Marker 1 on/off, Marker 2 on/off
    Tally: R/G and Front tally switch (H/L/off) 3 steps
    Functions: Lens extender on/off, waveform on/off, contrast, brightness, peaking, chroma and back light
    Power: On/off switch
    Dimension: 230(W)×175(H)×86(D) mm
    Power Consumption: approx. 16 W
    Viewfinder Adapter: AT-951 or AT-90

    VF-L20HD

    VF-L20HD

    Viewfinder

    2-inch LCD Viewfinder VF-L20HD

    Panel type TFT LCD
    Panel size 2 - inch
    Panel aspect ratio 16:9
    Picture Resolution 960(H)x540(V)
    Color Reproduction 16.7M
    Brigtness 220 cd/m2
    Function Brightness, Contrast, Peaking
    knobs VF front-facing Diopter
    Tally Red/Green Tally ON/OFF Switch
    Weight app. 0,7kg
    Power consumption app. 5W (at Heater-OFF)
    app. 6,5W at (at Heater-ON)
    Operation temperature -10°C to +50°C heater on -20°C to +50°C

    Remote/Setup Control Unit + Studio Adapter

    RU-1500JY-S3/S11

    RU-1500JY-S3/S11

    The high-performance touchscreen Remote Control Unit RU-1500JY-R1/-S3/S11 is connected to the Camera Control Unit (CCU) for remote operation of the camera or directly to the SK-HD camera series or Z-HD camera series. The RU-1500JY-S3&S11 has at on the top panel are lit by back light. Operators can see signs on the panel in the dark operation room.

    All key Camera Control functions, such as the one touch color temperature function, makes the RU-1500JY-R1/-S3/S11 ideal not only for professional TV studios but also for OB van use. Lens iris control, pedestal control and preview switch are assembled with an axis joystick control knob (RU-1500JY/-S3/S11). The camera can be easily adjusted using the 3.5 inch LCD touchscreen panel and rotary encoders. Custom switches further support the professional user in designing a personal workflow.



    Main control items are:

    RU-1500JY-S3/S11

    Camera power on/off, auto setup execution, save data file (scene file 0 to 8), manual adjustment using the rotary encoder and knobs, various on/off controls, PIX & WF video output select.

    Network Control: RJ-45 TCP/IP




    *Lens & Camera should support

    SU-1000

    SU-1000

    The SU-1000 Setup Control Unit is used for the adjustment of camera parameters in a multi-camera production environment.Utilizing a new wide touch screen LCD panel that expands control functions.

    It is connected directly to each CCU in parallel fashion via serial data cable, 12 cameras can be directly controlled from the SU-1000. Serial Camera control can be extended from 12 cameras up to 48 cameras(option).

    RJ45 Network control up to 128 camera with a distance of up to 100 meters (with repeater this can be extended).

    The compact and lightweight SU-1000 features Color LCD indicators in the display section to easily identify and access the provided control parameters. The unit is sufficiently small and lightweight enough to be used in space deprived locations such as encountered on a broadcast OB Van.

    The SU-1000 has these primary functions:

    • Selection of a single camera or groups of cameras to be controlled.
    • On/Off control of all functions.
    • Control of all variable data adjustments including Iris & Master black.
    • Selection of storage and operation data files.
    • Transfer of files and data between cameras or groups of cameras.
    • Adjustment and file data (write/ read) from SD memory card
    • Video output selection including external video switcher control (source or sink).
    • Ethernet connectivity and cabling

    SA-1000-S3/SA-1100

    SA-1000-S3/SA-1100

    Studio adapter with lens mounting option

    The SA-1000-S3/SA-1100 is a heavy-duty studio adapter designed for use with the KOKUSAI DENKI SK-HD or Z-HD series portable HDTV television camera. With the SA-1000-S3/SA-1100, the SK-HD or Z-HD series cameras can be used in a studio or field configuration. The SK-HD & Z-HD series portable HDTV television cameras can be easily installed and removed from the SA-1000-S3/SA-1100 chassis as required by the user to meet television program production requirements in studio and field.
