Description

Full HD HD-SDI Camera

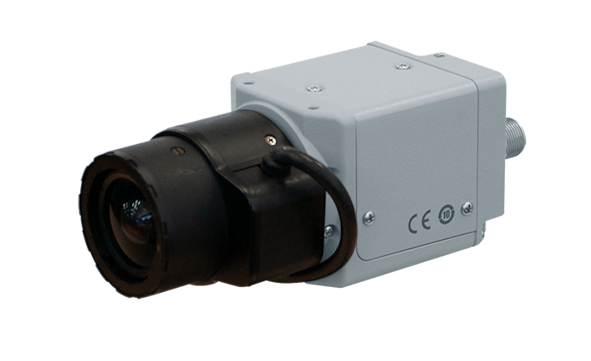

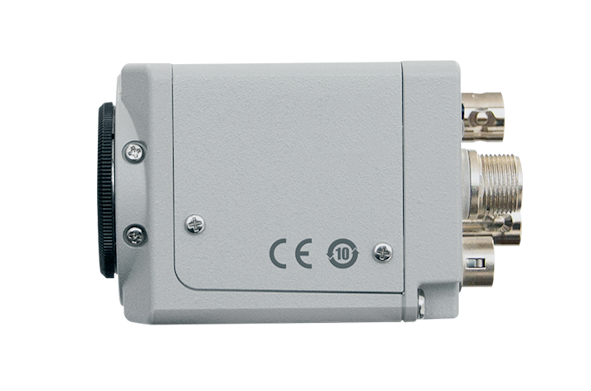

1/2.8" progressive scan CMOS HDTV (1080p/50) Colour Camera with HD-SDI Output. The KP-HD20W is a HDTV 1/2.8" color camera with a high resolution (2.4 Mio. pixel) RGB Beyer CMOS sensor, switchable picture format 4:3/16:9, 800 TV lines resolution , HD-SDI and analog CVBS output, 50dB S/N, up to 100m data transfer via coaxial cable, with optional multiunit MU-HD101 up to 300m data transfer and voltage supply via coaxial cable.

Features

• 1/2.8“ CMOS HDTV Standard
• Effective pixel: 1944 x 1212
• Lens mount: C/CS-mount (C-mount adapter LA-D20 standard)
• Outputs: HD-SDI 1080p/50 & VBS
• Horizontal resolution: 800 TV line
• Min. illumination: 0,01lx (F1.2, max. gain)
• S/N: > 50dB
• Shutter: 1/60 – 1/14000s & Manual
• Functions: Black Level, Detail, Backlight Compensation & White Balance
• Auto iris lens output: DC/Video
• Interface: RS 232c for Remote Control
• Power: 12VDC
• Dimensions: 44 (W) x 44 (H) x 57.5 (D) mm
• Weight: 160g
