Description

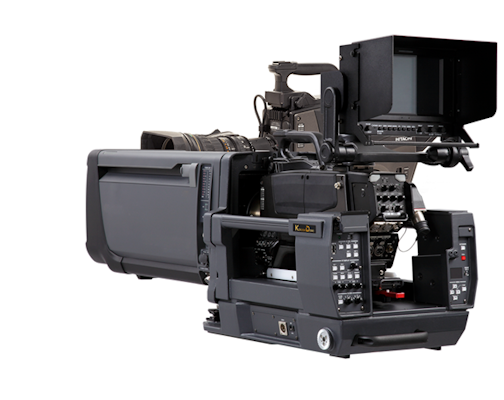

Global Shutter 1080p 3CMOS sensor HDTV studio & production camera

The SK-HD1800E is a high-performance, global shutter HDTV portable studio & production camera. KOKUSAI DENKI has implemented the latest imaging technology by using newly developed global shutter 3CMOS sensors to create outstanding HD images for new achievements in high sensitivity and no vertical smear.

KOKUSAI DENKI's advanced digital signal processing

Each essential part of the KOKUSAI DENKI SK-HD1800E camera system has its own DSP processor. Unique, independent DSP IC's are used for camera head processing, the transmission system and Camera Control Unit (CCU) processing. KOKUSAI DENKI's new, power efficient digital signal processors are designed to work with future 2K imaging technologies, offering excellent return on investment.

The SK-HD1800E achieves an outstanding signal-to-noise ratio specification of 62dB using KOKUSAI DENKI's proprietary low-noise circuit technology. Standard sensitivity is rated at F10 (59.94Hz)/F11 (50Hz) at 2000 lx. Clear images are obtained with little noise, even at high gain. High horizontal resolution performance of 1000TVL (Luminance channel) is the pinnacle of picture sharpness and is an attribute of the most transparent signal processing path of any KOKUSAI DENKI digital camera manufactured to date.

Digital signal transmission via Hybrid Fiber Optical Cable

The SK-HD1800E camera system utilizes industry standard Hybrid Fiber-optic cable (HFOC) connectors made of high-strength materials, that insure durability and reliable performance under the most demanding TV production conditions. The maximum HFOC length with applied camera power and fully operational facilities is 4,000m (13,200 feet) with no utility power*. Optical power meters at the camera head (via engineering menu) and CCU front panel indicate the optical condition of both transmitting and receiving signals independently to accurately depict proximity to the "digital cliff" (maximum cable distance) or provide basic HFOC diagnostics.

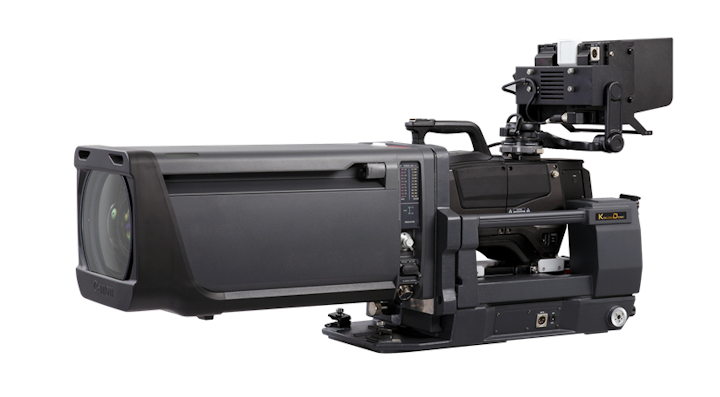

Dockable design

KOKUSAI DENKI's 2-piece chassis allows the use of Digital Fiber (1.5G and/or 3G), Digital Triax (1.5G and/or 3G) and Wireless camera adapters to offer the greatest flexibility.

New test on bottom

Economical version of 1080p Camera adaptor CA-HF550 and CU-HD5500 available for customers who don’t require the advanced expansion options and extra I/O connections of the flagship CU-HD1300 CCU series. ◼ 4K output with 12G-SDI will be available as optional model CU-HD550-S1 by combining with 1080p camera head

Features

• Imager: 3x [RGB], 2/3-inch, Global Shutter CMOS
• Native Scan: 1920 x 1080 progressive
• Scan types: 1080p, 1080i, 720p
• H&V Resolution: 1,000 TVL
• Sensitivity: F10 @ 59.94Hz / F11 @ 50Hz ref 2,000 lx.
• HD SNR: 62dB
• Vertical Smear: None
• Motorized remote 4 position filter wheel
• ND-Filter: Clear, Cross, 1/16ND, 1/64ND
• ECC (Electronic Color Correction): 3200K, 4300K, 5600K, 6300K, 8000K
• Camera cable: SMPTE fiber optic, single mode Fiber or Triax cable
• High-performance KOKUSAI DENKI DSPs
• High quality SD output down converted at the CCU
• Flawless signal transmission using SMPTE Digital Optical Fiber cable
• Camera system can operate directly with SM fiber installations
• Optional: Long-range Digital Triax System
• CU-HD1300(X) available with Fiber (F), Triax(T) or both Fiber & Triax (FT)
• CU-HD1300(X) available options: 4K upconverted 12G output included BT-2020 wide color gamut or ST 2110 IP (MOIP) output
• CCU HD-SDI outputs with embedded audio (2-channel)
• SD memory card system for offline storage & transfer of all setup data
• Prompter power and Floor Monitor power available on Camera adaptor
• 2 intercom channels compatible with Clear-com and RTS, 4w/2w
• 2 independent program returns (IFB's) w/intercom mix
• Optional: Hot cover available for cold weather operation (-25° C)
• Optional: Master Setup Unit (SU-1000) and Large Lens Adaptor (SA-1100)

Functions

• Multiple High Dynamic Range (HDR) settings
• Selectable gamma tables
• Real-time Lens Aberration Correction (RLAC)
• Luminance response tools like Ultra Gamma, Black stretch & Knee saturation
• Variable Color Temperatur adjustment
• Triple masking
• Preset masking
• Skin tone detail
• High-chroma detail
• Grey-scale automatic setup
• Storage of up to 8 lens files
• Focus assist
• Quick-focus function
• Electronic shutter in 6 steps from 1/100 – 1/2000, plus AES & CC frame

Downloads

• Datasheet

Configuration

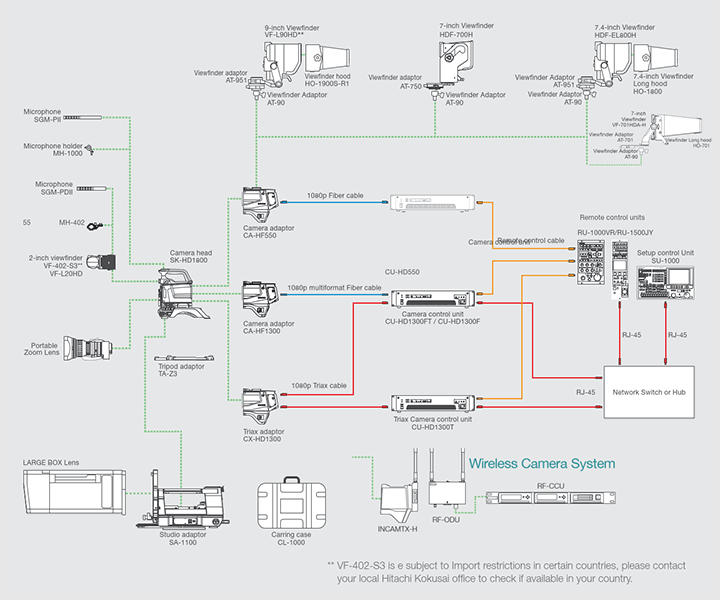

• System Configuration Chart (open in new window)

CA-HF1300E

• More details

Camera Adapter (Fiber)

CCU connector:	1 x HFOC female connector (LEMO) SMPTE-304M-type
Intercom:	2 x channel 5-pin each XLR. MIC on/off, ENG/PD level control, Tracker level control
Program audio:	2 x PGM audio level controls with Channel 1 & Channel 2 intercom mix
Teleprompter power output:	1 x 5-pin. AC 230 V/100 VA. external prompter R/G Tally drive out
Microphones:	Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
Return/Aux switcher:	4 x input remote AUX/VF video select connector (RET control)
Video in- & outputs:	1 x HD-SDI1 OUT, 3G-SDI/HD-SDI, 3G-SDI (l080p50/59.94) : SMPTE424/425 Level-A HD-SDI (1080i50159.94) SMPTE292M 1 x HD-SDI2 OUT, RET B output: SMPTE292M 1 x SD analog teleprompter out sheared with Genlock in
Other I/O:	1 x 29-pin (for SA-1100 cable-less interface, female) 1 x 5-pin script lamp DC 12V (1A max/female) 1 x 6-pin VF AUX return (female/for use in cranes or extended Head/ VF configurations) 1 x R05-R8F 8-pin TRUNK RS-422 or RS-232C female (option) 1 x XLR 4-pin. DC 12V power input (male)
Dimensions:	133(W)x189(H) x194(D)mm
Weight:	app. 2.2 kg, (4.8 lbs)
Operating temperature:	-10°C to +45°C (14°F to 114°F)

CX-HD1300E

• More details

Camera Adapter (Triax)

CCU connector:	1 x-Triax connector (Fiber)
Video transmission system:	Fully digital bi-directional. 10-bit, 4:2:2 sampling, 3G (1080p50/59.94)
Intercom:	2 x channel, 5-pin each XLR, MIC on/off, ENG/PD level control. Tracker level control
Program audio:	2 x PGM audio level controls with Channel 1 & Channel 2 intercom mix
Teleprompter power output:	1 x 5-pin. AC 230 V/100 VA. external prompter R/G Tally drive out
Microphones:	Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
Return/Aux switcher:	Remote AUX/VF video select connector (RET control)
Video in- & outputs:	2 x HD-SDI 1/3 OUT, 3G-SDI/HD-SDI 3G-SDI (1O8Op5O/59,94): SMPTE424/425 Level-A HD-SDI (1080i50/59.94): SMPTE292M 1 x HD-SDI 2 OUT - 3G-SDI or HD-SDI 3G-SDI (l080pSO/59.94): SMPTE424/425 Level-A HD-SDI (1080i50/59.94): SMPTE292M 1 x SD analog prompter out shared with Genlock in
Other I/O:	1 x 29-pin (for SA-1100 cable-less interface, female) 1 x 5-pin script lamp DC 12V (1.0 A max., female) 1 x 6-pin VF AUX return (female/for use in cranes or extended Head/VF configurations) 1 x XLR 4-pin, DC 12V power input (male)
Dimensions:	142(W)x 1B8(H)x202(D) mm
Weight:	app 2.6 kg, (5.7 lbs.)
Operating temperature:	-10 °C to +45 °C, (14 °F to +114 °F)

CA-HF550E

• More details

Camera Adapter (Fiber)

CCU connector:	1 x HFOC female connector (LEMO) SMPTE-304M-type
Intercom:	1 channel with 5-pin XLR Headset connector. MIC off/ENG/PROD. Headset Level controls for ENG and PROD Intercom.
Program audio:	2 x PGM audio level controls with intercom mix
AC 230V output:	1 x 5-pin. AC 230 V/100 VA Power Output. Tally drive out.
Microphones:	Channel 1 & 2, Line or MIC level select (MENU), with +48 V phantom power on/off
Video input & outputs:	2x HD-SDI/RET1/2 OUT (Camera/Return switchable) 3G-SDI (1080p50/59.94): SMPTE424/425 Level-A HD-SDI (1080i50/59.94, 720p50/59.94): SMPTE292M
Other I/O:	1x XLR 4-pin, 12VDC power input (male)
Dimensions:	137 (W) x 188 (H) x 201 (D)
Weight:	2.2 kg, (4.8 lbs) approximately
Operating temperature:	-10 °C to +45 °C, (14 °F to +114 °F)

Camera Control Units

CU-HD1300FE/-S1

• More details

Fiber CCU with 3G Video transmission system with fiber connector (Lemo).

GENLOCK IN:	1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
RETURN IN (1/2/3/4):	2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI,
RETURN B IN (1/2):	3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C
PROMPT IN:	1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
INTERCOM (HEAD SET):	5-pin XLR, -60dBm
COMMUNICATION:	1x D-sub 25-pin, Incom, Tally
INTERCOM:	0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire, (ENG, PROD) Clear-Com and RTS compatible
PGM:	0dBm / 600 Ω
R/G TALLY IN:	Contact or Voltage selectable
REMOTE 1:	1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
REMOTE 2:	1x 4-pin, 1.5Vp-p
REMOTE 3:	1x RJ-45
12G-SDI OUT:	2 x BNC, 12G-SDI, (option with –S1 type). Square division or 2 sample interleave division 12G-SDI: SMPTE 424/425 Level A/B
4K OUT:	4 x BNC, 3G-SDI, embedded audio available (option with –S1 type). Square division or 2 sample interleave division 3G-SDI: SMPTE 424/425 Level A/B
HD/SD OUT (1/2/3):	6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available)
3G-SDI:	SMPTE 424/425 Level A
HD-SDI:	SMPTE 292M
SD-SDI:	SMPTE 259M-C
PIX/WFW OUT:	1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio)
3G-SDI:	SMPTE 424/425 Level-A
HD-SDI:	SMPTE 292M
SD-SDI:	SMPTE 259M-C
MIC OUT 1:	1x XLR, 3-pin, 0dBm / 600 Ω
MIC OUT 2:	1x XLR, 3-pin, 0dBm / 600 Ω
INTERCOM (HEAD SET):	1x XLR, 5-pin, 0dBu Max. +15dB
REMOTE 1:	1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
REMOTE 2:	1x 4-pin, 1.5Vp-p
REMOTE 3:	1x RJ-45
COMMUNICATION:	1x D-sub 25-pin
INTERCOM:	0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM)
TALLY OUT (R/G):	1x D-sub 9-pin, Contact 24VDC, 10 mA
WFM CONTROL:	1x D-sub 15-pin WFM 0-7,0/ 5V
Power supply voltage:	100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
Mass:	11 kg, 24.3 lbs. approx.
Dimension:	432 (W) × 88 (H) × 419 (D) mm, 2 RU
Operating temperature:	0°C to 40°C, 32°F to 104°F
Power consumption:	300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA)

CU-HD1300FTE/-S1

• More details

Friax & fiber CCU with 3G Video transmission system with fiber connector (Lemo) & triax connector (Fischer).

GENLOCK IN:	1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
RETURN IN (1/2/3/4):	2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI,
RETURN B IN (1/2):	3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C
PROMPT IN:	1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
INTERCOM (HEAD SET):	5-pin XLR, -60dBm
COMMUNICATION:	1x D-sub 25-pin, Incom, Tally
INTERCOM:	0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire, (ENG, PROD) Clear-Com and RTS compatible
PGM:	0dBm / 600 Ω
R/G TALLY IN:	Contact or Voltage selectable
REMOTE 1:	1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
REMOTE 2:	1x 4-pin, 1.5Vp-p
REMOTE 3:	1x RJ-45
12G-SDI OUT:	2 x BNC, 12G-SDI, (option with –S1 type). Square division or 2 sample interleave division 12G-SDI: SMPTE 424/425 Level A/B
4K OUT:	4 x BNC, 3G-SDI, embedded audio available (option with –S1 type). Square division or 2 sample interleave division 3G-SDI: SMPTE 424/425 Level A/B
HD/SD OUT (1/2/3):	6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available)
3G-SDI:	SMPTE 424/425 Level A
HD-SDI:	SMPTE 292M
SD-SDI:	SMPTE 259M-C
PIX/WFW OUT:	1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio)
3G-SDI:	SMPTE 424/425 Level-A
HD-SDI:	SMPTE 292M
SD-SDI:	SMPTE 259M-C
MIC OUT 1:	1x XLR, 3-pin, 0dBm / 600 Ω
MIC OUT 2:	1x XLR, 3-pin, 0dBm / 600 Ω
INTERCOM (HEAD SET):	1x XLR, 5-pin, 0dBu Max. +15dB
REMOTE 1:	1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
REMOTE 2:	1x 4-pin, 1.5Vp-p
REMOTE 3:	1x RJ-45
COMMUNICATION:	1x D-sub 25-pin
INTERCOM:	0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM)
TALLY OUT (R/G):	1x D-sub 9-pin, Contact 24VDC, 10 mA
WFM CONTROL:	1x D-sub 15-pin WFM 0-7,0/ 5V
Power supply voltage:	100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
Mass:	11 kg, 24.3 lbs. approx.
Dimension:	432 (W) × 88 (H) × 419 (D) mm, 2 RU
Operating temperature:	0°C to 40°C, 32°F to 104°F
Power consumption:	300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA)

CU-HD1300TE

• More details

Triax CCU with 3G Video transmission system with triax connector (Fischer).

GENLOCK IN:	1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
RETURN IN (1/2):	2x BNC, 3G-SDI / HD SDI (1080i or 720p) / SD SDI, 3G-SDI: SMPTE 424/425 Level-A, HD-SDI: SMPTE 292M, SD-SDI: SMPTE 259M-C
PROMPT IN:	1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
INTERCOM (HEAD SET):	5-pin XLR, -60dBm
COMMUNICATION:	1x D-sub 25-pin, Incom, Tally
INTERCOM:	0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire, (ENG, PROD) Clear-Com and RTS compatible
PGM:	0dBm / 600 Ω
R/G TALLY IN:	Contact or Voltage selectable
REMOTE 1:	1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
REMOTE 2:	1x 4-pin, 1.5Vp-p
REMOTE 3:	1x RJ-45
HD/SD OUT (1/2/3):	6x BNC, 3G-SDI (1080p) / HD-SDI (1080/25p, 1080/25PsF, 1080i or 720p) / SD-SDI selectable (embedded audio available)
3G-SDI:	SMPTE 424/425 Level-A
HD-SDI:	SMPTE 292M
SD-SDI:	SMPTE 259M-C
PIX/WFW OUT:	1x BNC, 3G-SDI/HD-SDI (1080i or 720p) / SD-SDI selectable (embedded audio)
3G-SDI:	SMPTE 424/425 Level-A
HD-SDI:	SMPTE 292M
SD-SDI:	SMPTE 259M-C
MIC OUT 1:	1x XLR, 3-pin, 0dBm / 600 Ω
MIC OUT 2:	1x XLR, 3-pin, 0dBm / 600 Ω
INTERCOM (HEAD SET):	1x XLR, 5-pin, 0dBu Max. +15dB
REMOTE 1:	1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C (switchable)
REMOTE 2:	1x 4-pin, 1.5Vp-p
REMOTE 3:	1x RJ-45
COMMUNICATION:	1x D-sub 25-pin
INTERCOM:	0dBm, 600 Ω at 4Wire/ 0dBu or -15dBu, 200 Ω at 2Wire (ENG, PD and PGM)
TALLY OUT (R/G):	1x D-sub 9-pin, Contact 24VDC, 10 mA
WFM CONTROL:	1x D-sub 15-pin WFM 0-7,0/ 5V
Power supply voltage:	100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
Mass:	11 kg, 24.3 lbs. approx.
Dimension:	432 (W) × 88 (H) × 419 (D) mm, 2 RU
Operating temperature:	0°C to 40°C, 32°F to 104°F
Power consumption:	300W app. (AC operation, incl. SK-HD1300E, VF-L20HD & AUX power out 100VA)

CU-HD500E-S5

• More details

Fiber CCU with 1,5G Video transmission system with fiber connector (Lemo).

GENLOCK IN:	1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
RETURN IN (1/2):	1x BNC, HD SDI or SD SDI
PROMPT IN:	1x BNC, VS or VBS 1.0Vp-p/75 Ω (loop through)
INTERCOM (HEAD SET):	5-pin XLR, -60dBm
COMMUNICATION:	1x D-sub 25-pin, Incom, Tally
INTERCOM:	0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire
PGM:	0dBm / 600 Ω
R/G TALLY IN:	Contact or DC supply
HD/SD OUT:	2x BNC, HD-SDI (embedded audio available) 4 x BNC, HD-SDI or SD-SDI selectable (embedded audio available) HD-SDI or SD-SDI selectable PIX (embedded audio available)
MIC OUT 1:	1x XLR, 3-pin, 0dBm / 600 Ω
MIC OUT 2:	1x XLR, 3-pin, 0dBm / 600 Ω
INTERCOM (HEAD SET):	1x XLR, 5-pin, 0dBu Max. +15dB
REMOTE 1:	1x 4-pin, 1.5Vp-p
REMOTE 2:	1x 4-pin, 1.5Vp-p
MIC REMOTE:	1x D-sub 25-pin MIC 1.2 GAIN
TALLY OUT (R/G):	1x D-sub 9-pin, Contact 24VDC, 10 mA
WFM CONTROL:	1x D-sub 15-pin WFM 0-7,0/ 5V
Power supply voltage:	230VAC, 50Hz
Mass:	9 kg, 15.4 lbs. approx.
Dimension:	432 (W) × 88 (H) × 419 (D) mm, 2 RU
Operating temperature:	0°C to 40°C, 32°F to 104°F
Power consumption:	300W app. (AC operation, incl. Z-HD6000, VF-L20HD & AUX power out 100VA)

CU-HD550FE

• More details

Fiber CCU with 3G Video transmission system with fiber connector (Lemo).

GENLOCK IN:	1x BNC, B-BST 0.45Vp-p/75 Ω (loop through), HDTV tri-level sync 0.60Vp-p/75 Ω (loop through)
RETURN IN (1/2):	2x BNC, 3G-SDI or HD-SDI or SD-SDI 3G-SDI : SMPTE424/425 Level-A HD-SDI : SMPTE292M SD-SDI : SMPTE259M-C
COMMUNICATION:	1x D-sub 25-pin, Incom, Tally
INTERCOM:	0dBm, 600 Ω at 4Wire, 0dBu or -15dBu, 200 Ω at 2Wire, (ENG, PROD) Clear-Com and RTS compatible
PGM:	0dBm / 600 Ω
R/G TALLY IN:	Contact or Voltage selectable
HD/SD OUT (1/2):	4x BNC, 3G-SDI or HD-SDI or SD-SDI selectable (Embedded 2-Chnl audio available) 3G-SDI : SMPTE424/425 Level-A HD-SDI : SMPTE292M SD-SDI : SMPTE259M-C
PIX/WFM OUT:	2x BNC, 3G-SDI or HD-SDI or SD-SDI selectable (Embedded 2-Chnl audio available) 3G-SDI : SMPTE424/425 Level-A HD-SDI : SMPTE292M SD-SDI : SMPTE259M-C
MIC OUT 1:	1x XLR, 3-pin, 0dBm / 600 Ω
MIC OUT 2:	1x XLR, 3-pin, 0dBm / 600 Ω
REMOTE 1:	1x 4-pin, 1.5Vp-p
REMOTE 2:	1x RJ-45
Power supply voltage:	100 to 240VAC, 47 to 63Hz (with auto-sensing mode)
Mass:	10 kg, 22 lbs. approx.
Power consumption:	300W approx. (AC operation, incl. SK-HD1800 or Z-HD5500, CA-HF550, VF-L20HD and AUX power out 100VA)
Operating temperature:	0°C to 40°C, 32°F to 104°F

Viewfinder

HDF-700H-S1/S2

• More details

Viewfinder HDF-700H-S2
Viewfinder HDF-700H-S2 with HK-1000 mount adapter
• Viewfinder HDF-700H-S1 with HK-700 mount adapter

Viewfinder

7-inch LCD Full HD Viewfinder HDF-700H-S1/S2

Panel type	TFT LCD
Panel size	7 - inch
Panel aspect ratio	16:9
Picture Resolution	1920(H)x1080(V)
Viewing Angle	178°(H),178°(V)
Brigtness / Contrast	450 cd/m2 / 1.100:1
Response Time	Fast Response Time
Function	Brightness, Contrast, Peaking Focus Assist, Marker Waveform, Vector scope
Tally	Red/Green
Weight	app. 1.35kg
Power consumption	app. 12W
EXTERNAL SDI IN	BNCx1 1080P*/1080i
Operation temperature	-20°C to +50°C
Viewfinder Adaptors Option	HK-700 /HK-1000/AT-951-S2

* Can be connected to the camera for 1080p Viewfinder Image

Optional Accessories

HFC-777LK Fixed Long Hood

HFC-777LM Movable Long Hood

VF-L90HD / AT-90 / AT-951

• More details

Viewfinder

9” LCD Color (16:9) Viewfinder

Number of pixel:	1280(H) x 768(V)
Angle of view:	up and down 170°, left and right 170°
Marker:	Marker 1 on/off, Marker 2 on/off
Tally:	R/G and Front tally switch (H/L/off) 3 steps
Functions:	Lens extender on/off, waveform on/off, contrast, brightness, peaking, chroma and back light
Power:	On/off switch
Dimension:	230(W)×175(H)×86(D) mm
Power Consumption:	approx. 16 W
Viewfinder Adapter:	AT-951 or AT-90

VF-L20HD

• More details

Viewfinder

2-inch LCD Viewfinder VF-L20HD

Panel type	TFT LCD
Panel size	2 - inch
Panel aspect ratio	16:9
Picture Resolution	960(H)x540(V)
Color Reproduction	16.7M
Brigtness	220 cd/m2
Function	Brightness, Contrast, Peaking knobs VF front-facing Diopter
Tally	Red/Green Tally ON/OFF Switch
Weight	app. 0,7kg
Power consumption	app. 5W (at Heater-OFF) app. 6,5W at (at Heater-ON)
Operation temperature	-10°C to +50°C heater on -20°C to +50°C

Remote/Setup Control Unit + Studio Adapter

RU-1500JY-R1/-S3

• More details

The high-performance touchscreen Remote Control Unit RU-1500JY-R1/-S3/S11 is connected to the Camera Control Unit (CCU) for remote operation of the camera or directly to the SK-HD camera series or Z-HD camera series. The RU-1500JY-S3&S11 has at on the top panel are lit by back light. Operators can see signs on the panel in the dark operation room.

All key Camera Control functions, such as the one touch color temperature function, makes the RU-1500JY-R1/-S3/S11 ideal not only for professional TV studios but also for OB van use. Lens iris control, pedestal control and preview switch are assembled with an axis joystick control knob (RU-1500JY/-S3/S11). The camera can be easily adjusted using the 3.5 inch LCD touchscreen panel and rotary encoders. Custom switches further support the professional user in designing a personal workflow.

Main control items are:

Camera power on/off, auto setup execution, save data file (scene file 0 to 8), manual adjustment using the rotary encoder and knobs, various on/off controls, PIX & WF video output select.

Network Control: RJ-45 TCP/IP

*Lens & Camera should support

SU-1000

• More details

The SU-1000 Setup Control Unit is used for the adjustment of camera parameters in a multi-camera production environment.Utilizing a new wide touch screen LCD panel that expands control functions.

It is connected directly to each CCU in parallel fashion via serial data cable, 12 cameras can be directly controlled from the SU-1000. Serial Camera control can be extended from 12 cameras up to 48 cameras(option).

RJ45 Network control up to 128 camera with a distance of up to 100 meters (with repeater this can be extended).

The compact and lightweight SU-1000 features Color LCD indicators in the display section to easily identify and access the provided control parameters. The unit is sufficiently small and lightweight enough to be used in space deprived locations such as encountered on a broadcast OB Van.

The SU-1000 has these primary functions:

• Selection of a single camera or groups of cameras to be controlled.
• On/Off control of all functions.
• Control of all variable data adjustments including Iris & Master black.
• Selection of storage and operation data files.
• Transfer of files and data between cameras or groups of cameras.
• Adjustment and file data (write/ read) from SD memory card
• Video output selection including external video switcher control (source or sink).
• Ethernet connectivity and cabling

SA-1000-S3/SA-1100

• More details

Studio adapter with lens mounting option

The SA-1000-S3/SA-1100 is a heavy-duty studio adapter designed for use with the KOKUSAI DENKI SK-HD or Z-HD series portable HDTV television camera. With the SA-1000-S3/SA-1100, the SK-HD or Z-HD series cameras can be used in a studio or field configuration. The SK-HD & Z-HD series portable HDTV television cameras can be easily installed and removed from the SA-1000-S3/SA-1100 chassis as required by the user to meet television program production requirements in studio and field.

• Page top
